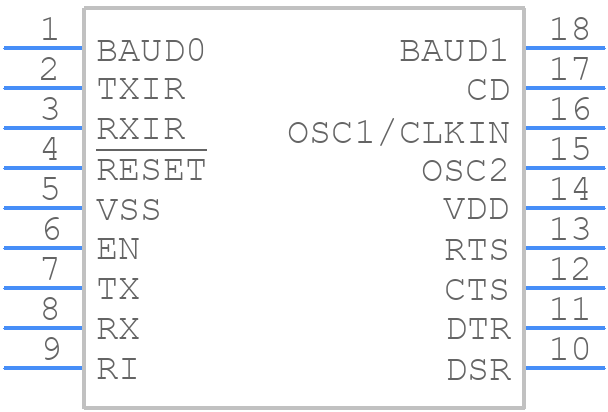

MCP2150-I/SO - Microchip

MCP2150-I/SO Details

• Manufacturer Part Number:

  MCP2150-I/SO

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  SOIC

• Package Description:

  0.300 INCH, PLASTIC, SOIC-18

• Pin Count:

  18

• Manufacturer Package Code:

  SOIC-18

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• JESD-30 Code:

  R-PDSO-G18

• JESD-609 Code:

  e3

• Length:

  17.87 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP18,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Screening Level:

  TS 16949

• Seated Height-Max:

  2.64 mm

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Telecom IC Type:

  TELECOM CIRCUIT

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.49 mm
