- Part Number MCP2155-I/P
- Manufacturer Microchip
- Pin Count 18
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 18-Lead Plastic Dual In-line (P)
- Released Date Jan 11, 2017
- Last Modified Date Jun 16, 2025 5:03 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCP2155-I/P Details
-
Manufacturer Part Number:
MCP2155-I/P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
0.300 INCH, PLASTIC, DIP-18
-
Pin Count:
18
-
Manufacturer Package Code:
PDIP-18
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
6 Weeks
MCP2155-I/P Frequently Asked Questions (FAQs)
-
The MCP2155 can transmit IR signals up to 56 kHz, but the maximum frequency depends on the specific application and the IR receiver used.
-
The MCP2155 has a built-in protocol decoder that can be configured for different IR protocols using the device's registers. The specific configuration depends on the protocol used, and the datasheet provides examples for common protocols.
-
The transmission distance of the IR signal using the MCP2155 depends on the IR LED used, the ambient light conditions, and the sensitivity of the IR receiver. Typically, the transmission distance can range from a few centimeters to several meters.
-
No, the MCP2155 is designed specifically for IR transmission and does not have the capability to receive IR signals.
-
The power consumption of the MCP2155 depends on the operating mode and the frequency of the IR signal. The device has a low-power shutdown mode that can be used to reduce power consumption when not in use. Additionally, the power consumption can be reduced by using a lower supply voltage and optimizing the IR signal transmission frequency.
Trust Checks
System Verified
MCP2155-I/P Overview

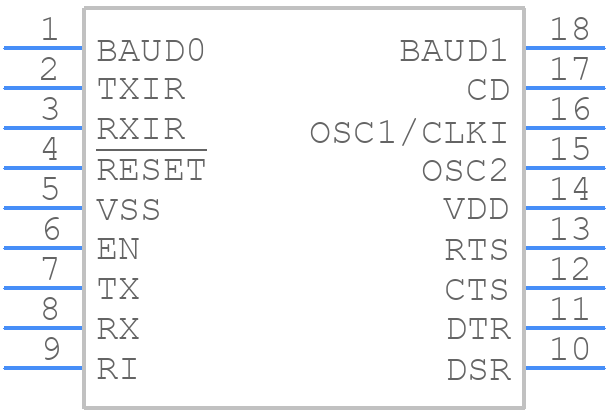

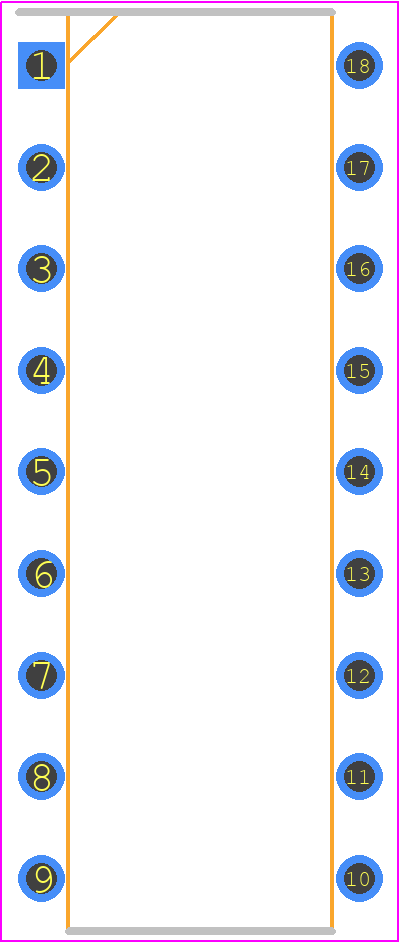

Use the download button to access the MCP2155-I/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP21,
or try a keyword search, such as Other Telecom ICs
