MCP22301-2I/KYX - Microchip

Description: USB Interface IC Stand-Alone USB Type-C/PD Port Controller with Source/Sink and dead battery

Download MCP22301-2I/KYX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

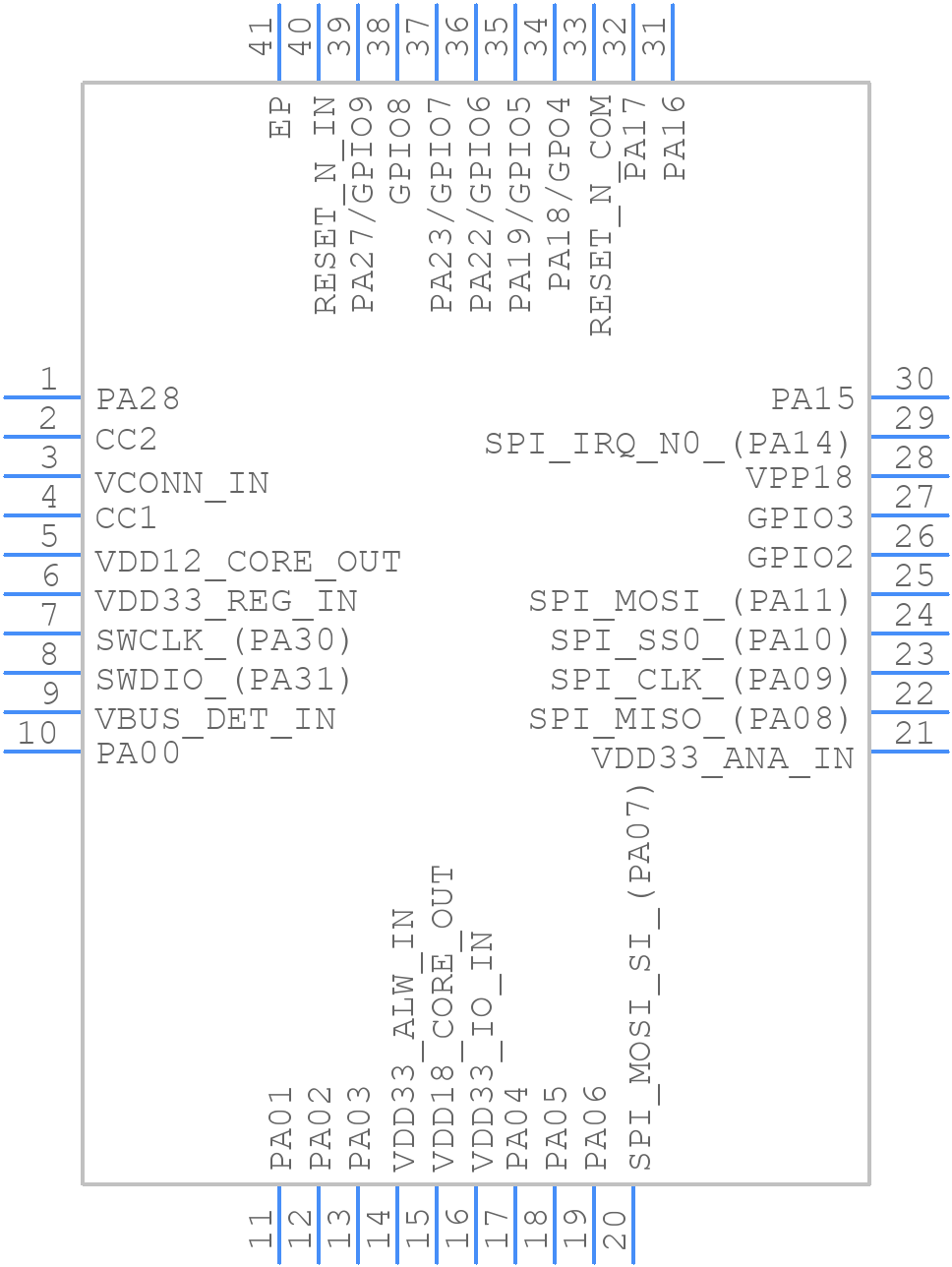

MCP22301-2I/KYX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP22301-2I/KYX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm Exposed P
click to zoom
3D Models
MCP22301-2I/KYX - Microchip - 3D model - Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm Exposed P
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MCP22301-2I/KYX
  • Part Number MCP22301-2I/KYX
  • Manufacturer Microchip
  • Pin Count 41
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm Exposed P
  • Released Date Oct 7, 2025
  • Last Modified Date Oct 7, 2025 5:13 AM UTC
  • Pinout / Pin List Click Here (Member Only)

MCP22301-2I/KYX Details

  • Manufacturer Part Number:

    MCP22301-2I/KYX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    VQFN-40

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)
