MCP22301T-2I/KYX - Microchip

Description: Programmable USB Type-C™ (1) Power Delivery (PD) Solution for Source-only, Sink-only, Dual Role Power, and Dual Role Data Applications Companion device for USB Power Delivery Stack (PDS) Fully Customizable Software Standard Power Delivery Power Profiles (15/27/45/60/100W) Supported with No Software Modification USB Power Delivery 3.1 Compliant MAC USB Type-C™ Connector Support with Connection Detection and Control Integrated Analog Discrete Components Reduce Bill of Materials and Design F

Download MCP22301T-2I/KYX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

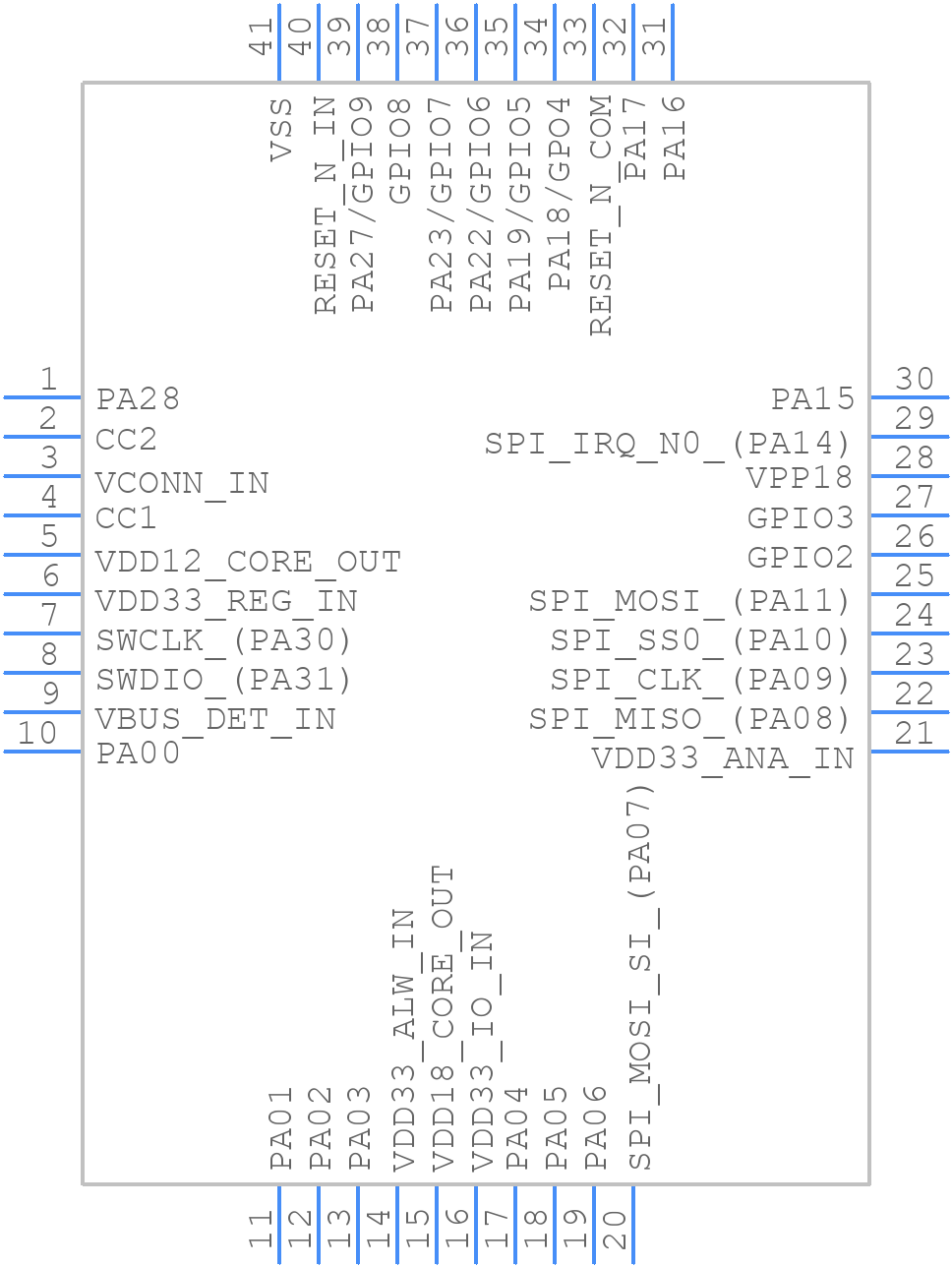

MCP22301T-2I/KYX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP22301T-2I/KYX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm Exposed P
click to zoom
3D Models
MCP22301T-2I/KYX - Microchip - 3D model - Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm Exposed P
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MCP22301T-2I/KYX
  • Part Number MCP22301T-2I/KYX
  • Manufacturer Microchip
  • Pin Count 41
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm Exposed P
  • Released Date Oct 7, 2025
  • Last Modified Date Oct 7, 2025 5:14 AM UTC
  • Pinout / Pin List Click Here (Member Only)

MCP22301T-2I/KYX Details

  • Manufacturer Part Number:

    MCP22301T-2I/KYX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    VQFN-40

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)
