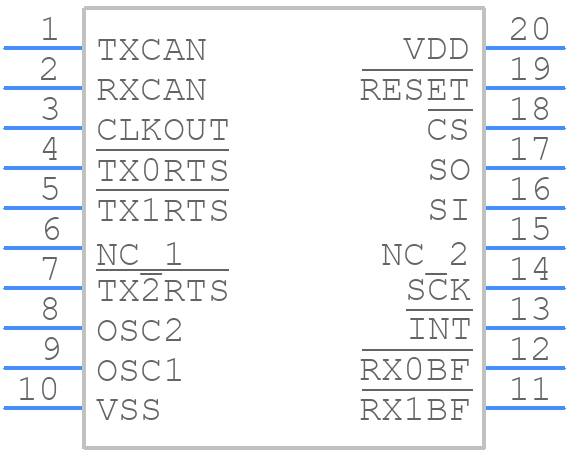

MCP2510-I/ST - Microchip

MCP2510-I/ST Details

• Manufacturer Part Number:

  MCP2510-I/ST

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  4.40 MM, PLASTIC, TSSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  TSSOP-20

• Reach Compliance Code:

  Compliant

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• Additional Feature:

  OPERATES AT 3V MINIMUM SUPPLY @ 16 MHZ

• Boundary Scan:

  NO

• Clock Frequency-Max:

  25 MHz

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.125 MBps

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Serial I/Os:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
