MCP2510T-E/SO - Microchip

Description: IC, CAN Controller, stand alone, MCP2510T-E/SO

Download MCP2510T-E/SO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

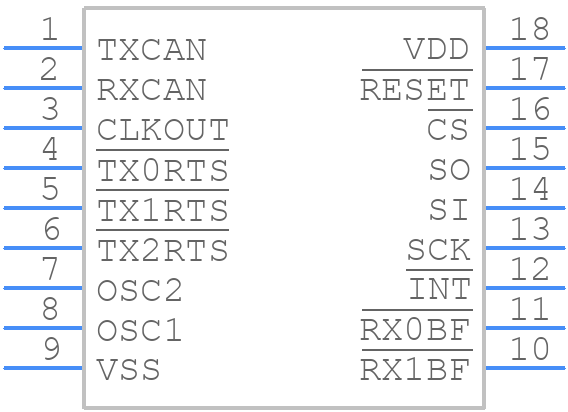

MCP2510T-E/SO - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2510T-E/SO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SO 18-Lead [SOIC]
click to zoom
3D Models
MCP2510T-E/SO - Microchip - 3D model - Small Outline Packages - SO 18-Lead [SOIC]
click to zoom

MCP2510T-E/SO Details

  • Manufacturer Part Number:

    MCP2510T-E/SO

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP18,.4

  • Pin Count:

    18

  • Manufacturer Package Code:

    SOIC-18

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    1999-06-07

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Boundary Scan:

    NO

  • Bus Compatibility:

    SPI

  • Clock Frequency-Max:

    25 MHz

  • Communication Protocol:

    SYNC; BIT ;BYTE

  • Data Encoding/Decoding Method:

    NRZ

  • Data Transfer Rate-Max:

    0.125 MBps

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    18

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • RAM (words):

    14

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

MCP2510T-E/SO Frequently Asked Questions (FAQs)

  • The maximum frequency of the crystal oscillator that can be used with the MCP2510T-E/SO is 20 MHz. However, it's recommended to use a 16 MHz crystal oscillator for optimal performance.
  • The MCP2510T-E/SO can be configured for a specific CAN bus speed by setting the bit timing registers (CNF1, CNF2, and CNF3) according to the desired bus speed. The Microchip CAN Bus Analyzer software can be used to calculate the bit timing values for a specific bus speed.
  • The maximum number of nodes that can be connected to a CAN bus using the MCP2510T-E/SO is 127, as per the CAN protocol specification. However, the actual number of nodes that can be connected may be limited by the physical layer (e.g., cable length, termination, and noise tolerance).
  • The MCP2510T-E/SO has built-in error detection and fault confinement mechanisms. The device can detect errors such as bit errors, stuff errors, and CRC errors, and can enter a bus-off state if a fault is detected. The application software can use the error flags and status registers to handle errors and implement fault confinement strategies.
  • Yes, the MCP2510T-E/SO can be used in a multi-master CAN bus configuration. The device supports non-destructive bit-wise arbitration, which allows multiple masters to share the bus. However, the application software must implement the necessary arbitration and synchronization mechanisms to ensure reliable data transfer.
