MCP251863T-E/9PX - Microchip

Description: External CAN FD Controller with Integrated CAN FD Transceiver and Serial Peripheral Interface (SPI) • Arbitration Bit Rate Up to 1 Mbps • Data Bit Rate up to 5 Mbps • CAN FD Controller Modes - Mixed CAN 2.0B and CAN FD Mode - CAN 2.0B Mode • Fully ISO 11898-1:2015, ISO 11898-2: 2016 and SAE J2962-2 Compliant • Temperature Ranges: - Extended (E): –40°C to +125°C - High (H): –40°C to +150°C • ISO 26262 Functional Safety Ready • Low Electromagnetic Emission (EME) and High Electromagnetic Immunit

Download MCP251863T-E/9PX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

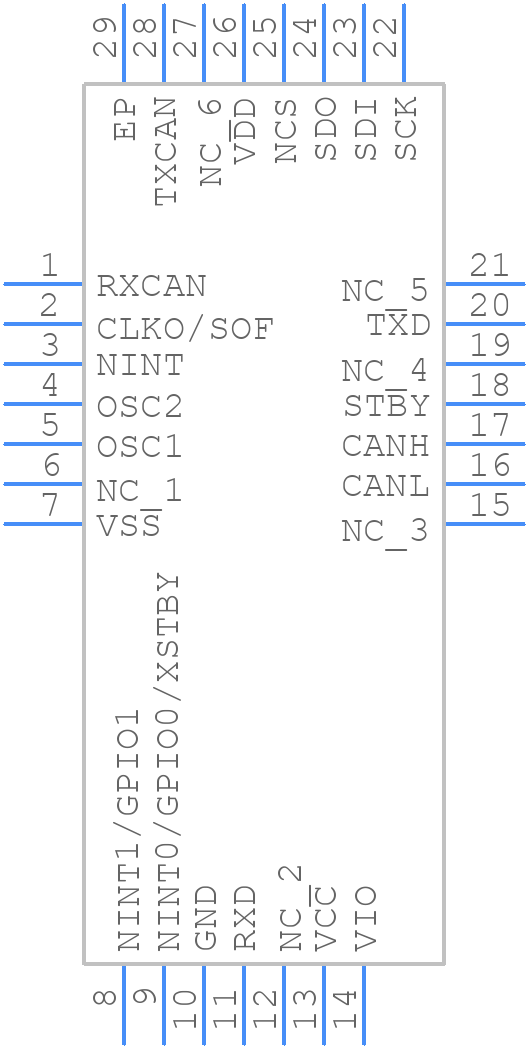

MCP251863T-E/9PX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP251863T-E/9PX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Very Thin Plastic Quad Flat, No Lead Package (9PX) - 5x5 mm Body [VQFN] With Stepped Wettable Fl
click to zoom
3D Models
MCP251863T-E/9PX - Microchip - 3D model - Quad Flat No-Lead - 28-Lead Very Thin Plastic Quad Flat, No Lead Package (9PX) - 5x5 mm Body [VQFN] With Stepped Wettable Fl
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MCP251863T-E/9PX
  • Part Number MCP251863T-E/9PX
  • Manufacturer Microchip
  • Pin Count 29
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - 28-Lead Very Thin Plastic Quad Flat, No Lead Package (9PX) - 5x5 mm Body [VQFN] With Stepped Wettable Fl
  • Released Date Dec 17, 2024
  • Last Modified Date Dec 17, 2024 5:18 AM UTC
  • Pinout / Pin List Click Here (Member Only)

MCP251863T-E/9PX Details

  • Manufacturer Part Number:

    MCP251863T-E/9PX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    VQFN-28

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Boundary Scan:

    NO

  • Bus Compatibility:

    CAN, SPI

  • Clock Frequency-Max:

    40 MHz

  • Data Transfer Rate-Max:

    0.625 MBps

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Number of I/O Lines:

    2

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    28

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (words):

    2048

  • Screening Level:

    ISO 26262

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

MCP251863T-E/9PX Frequently Asked Questions (FAQs)

  • The maximum number of nodes that can be connected to the CAN bus depends on the physical layer implementation, but typically it's around 110-120 nodes. However, it's recommended to limit the number of nodes to 70-80 to ensure reliable communication.
  • The MCP251863T-E/9PX can be configured for a specific CAN bus speed by setting the bitrate prescaler (BRP) and the time quanta (TQ) registers. The datasheet provides a table to calculate the BRP and TQ values for different bus speeds.
  • The main difference between the MCP251863T-E/9PX and the MCP2515 is that the MCP251863T-E/9PX has a higher operating frequency (up to 100 MHz) and a more advanced feature set, including a larger FIFO buffer and more flexible interrupt handling.
  • The MCP251863T-E/9PX has built-in error detection and fault handling mechanisms, including error counters, error flags, and bus-off detection. The datasheet provides guidance on how to handle these conditions and recover from errors.
  • The MCP251863T-E/9PX is a 5V device, but it can be used with a 3.3V microcontroller if a level translator is used to translate the voltage levels between the two devices.
