MCP251863T-E/SSVAO - Microchip

Description: CAN Interface IC Stand-alone Low Power CAN FD Controller and CAN FD TRX w/SPI Interface Grade 1

Download MCP251863T-E/SSVAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

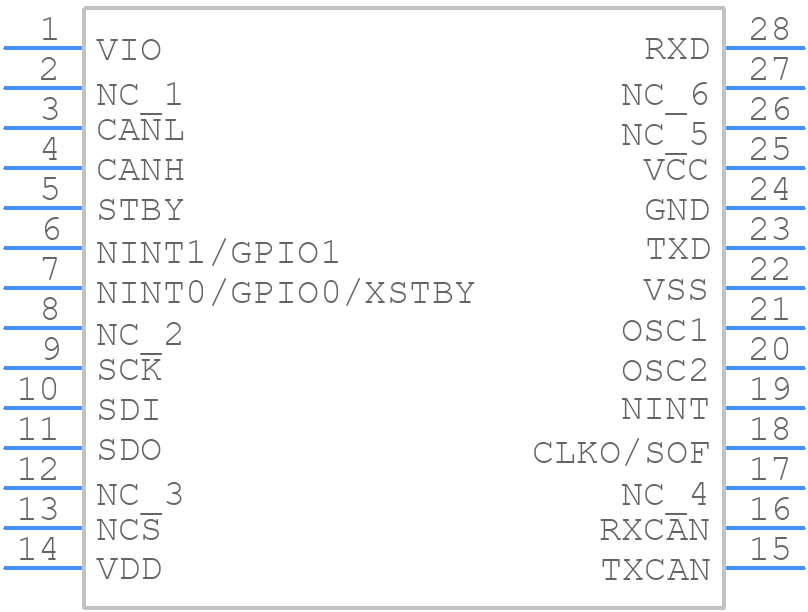

MCP251863T-E/SSVAO - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP251863T-E/SSVAO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]
click to zoom
3D Models
MCP251863T-E/SSVAO - Microchip - 3D model - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]
click to zoom

MCP251863T-E/SSVAO Details

  • Manufacturer Part Number:

    MCP251863T-E/SSVAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Boundary Scan:

    NO

  • Bus Compatibility:

    CAN, SPI

  • Clock Frequency-Max:

    40 MHz

  • Data Transfer Rate-Max:

    0.625 MBps

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Low Power Mode:

    YES

  • Number of I/O Lines:

    2

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    28

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • RAM (words):

    2048

  • Screening Level:

    AEC-Q100; AEC-Q006; ISO 26262

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

MCP251863T-E/SSVAO Frequently Asked Questions (FAQs)

  • The MCP251863T-E/SSVAO is a CAN FD controller, and as such, it follows the CAN FD specification, which allows for up to 127 nodes on a single bus. However, the actual number of nodes that can be connected depends on the specific application, bus topology, and other factors such as cable length and termination.
  • To configure the MCP251863T-E/SSVAO for CAN FD mode, you need to set the CANCTRL register to enable CAN FD mode, and then configure the bit rate and other parameters according to the CAN FD specification. You can refer to the Microchip MCP251863T-E/SSVAO datasheet and application notes for more detailed information.
  • The MCP251863T-E/SSVAO supports baud rates up to 10 Mbps for CAN FD mode and up to 1 Mbps for Classical CAN mode.
  • The MCP251863T-E/SSVAO has built-in error detection and fault handling mechanisms, including error counters, error flags, and bus-off detection. You can use these features to detect and handle errors, and implement fault-tolerant strategies in your application.
  • The MCP251863T-E/SSVAO is a 5V device, but it is 3.3V tolerant on its digital inputs. However, it's recommended to use a level translator or voltage regulator to ensure reliable operation and prevent damage to the device.
