The maximum number of nodes that can be connected to the CAN bus depends on the physical layer implementation, but typically it is limited to 127 nodes. The MCP251863T-H/9PXVAO can handle up to 110 nodes, considering the maximum allowed bus length and stub length.
The MCP251863T-H/9PXVAO can be configured for a specific CAN bus speed by setting the bit timing registers (CNF1, CNF2, and CNF3) according to the desired bus speed. The Microchip CAN Bus Analyzer software or the MCP251863T-H/9PXVAO datasheet can be used to calculate the required bit timing values.
The maximum transmission distance of the CAN bus using the MCP251863T-H/9PXVAO depends on the physical layer implementation, including the cable type, length, and termination. Typically, the maximum transmission distance is around 40 meters at 1 Mbps, but it can be extended up to 100 meters or more with proper cable selection and termination.
The MCP251863T-H/9PXVAO has built-in error detection and fault confinement mechanisms. The device can detect errors such as bit errors, stuff errors, and CRC errors, and can also detect faults such as bus-off, error-passive, and error-active. The device can be configured to generate interrupts or flags upon error detection, allowing the system to take corrective action.
No, the MCP251863T-H/9PXVAO is a CAN 2.0B compliant device and does not support CAN FD. For CAN FD applications, a different device such as the MCP2517FD or MCP2518FD should be used.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP251863T-H/9PXVAO Overview

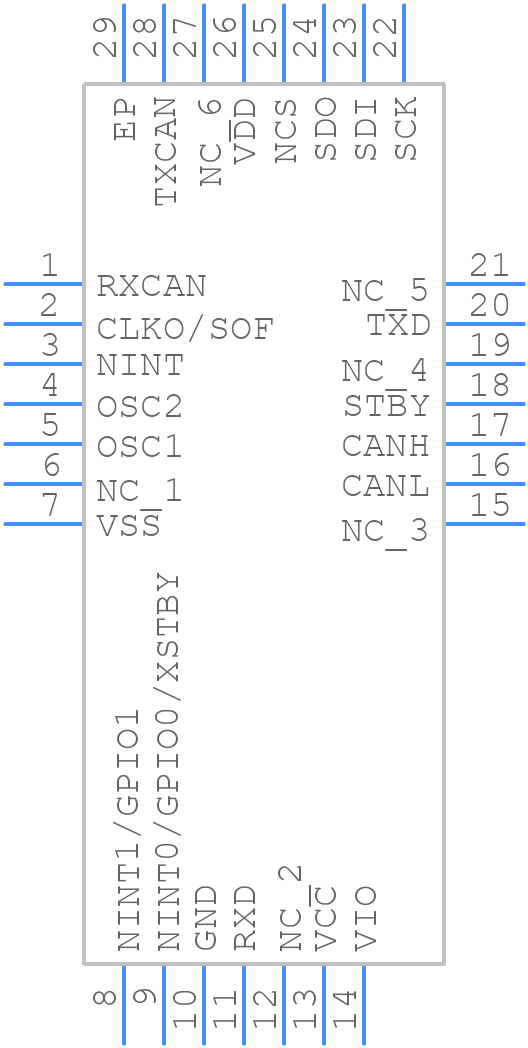

Use the download button to access the MCP251863T-H/9PXVAO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP25,
or try a keyword search, such as Serial IO/Communication Controllers
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
