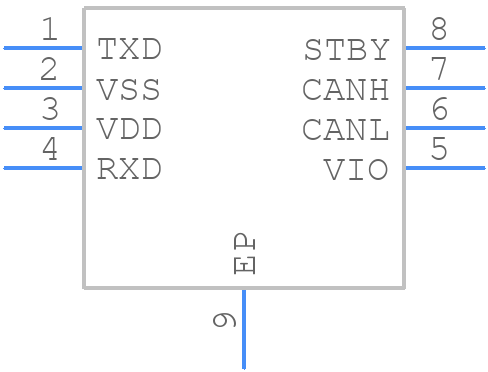

MCP2542WFDT-H/MF - Microchip

MCP2542WFDT-H/MF Details

• Manufacturer Part Number:

  MCP2542WFDT-H/MF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  DFN-8

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  6 Weeks

• Date Of Intro:

  2016-03-03

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  7

• Data Rate:

  8000 Mbps

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Transceivers:

  1

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  140 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Telecom IC Type:

  CAN FD TRANSCEIVER

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
