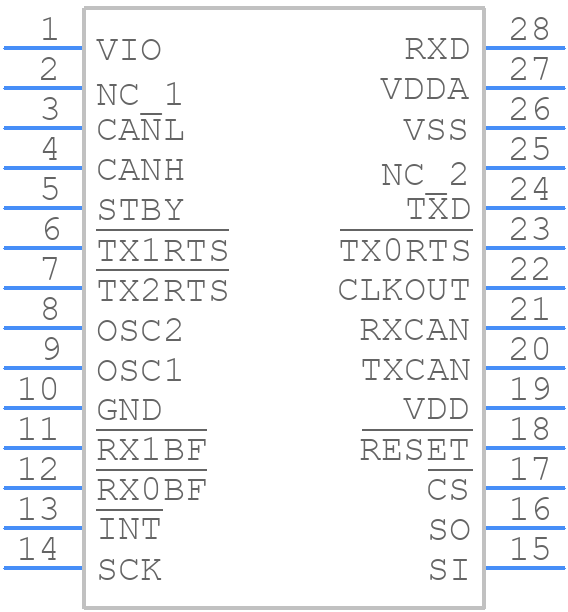

MCP25625-E/SS - Microchip

MCP25625-E/SS Frequently Asked Questions (FAQs)

• What is the maximum number of nodes that can be connected to the CAN bus?
  The maximum number of nodes that can be connected to the CAN bus depends on the physical layer implementation, but typically it's recommended to limit it to 64 nodes to ensure reliable communication.
• How do I configure the MCP25625-E/SS for a specific CAN bus speed?
  The MCP25625-E/SS can be configured for different CAN bus speeds by setting the appropriate bit rates using the BRGCON1 and BRGCON2 registers. Refer to the datasheet for specific bit rate settings for different CAN bus speeds.
• What is the maximum length of the CAN bus cable?
  The maximum length of the CAN bus cable depends on the bus speed and the physical layer implementation. As a general rule, the maximum cable length is 40 meters for a 1 Mbps bus speed and 10 meters for a 500 kbps bus speed.
• How do I handle errors and fault detection on the CAN bus?
  The MCP25625-E/SS has built-in error detection and fault confinement mechanisms. The device can detect errors such as bit errors, stuff errors, and CRC errors, and can also detect faults such as bus-off and error passive states. The device can also be configured to generate interrupts on error detection.
• Can I use the MCP25625-E/SS in a non-CAN bus application?
  While the MCP25625-E/SS is designed for CAN bus applications, it can also be used in other serial communication protocols such as UART, SPI, or I2C with some modifications to the firmware and hardware. However, this may require additional external components and may not be as efficient as using a dedicated protocol-specific transceiver.
