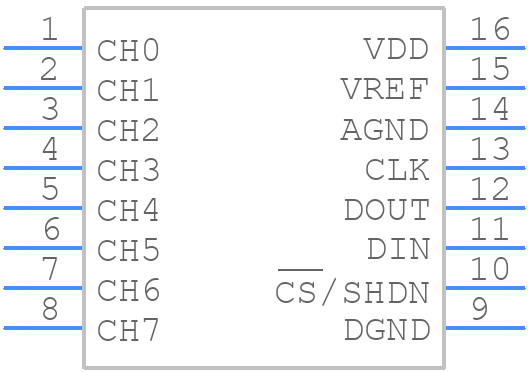

MCP3008-I/P - Microchip

MCP3008-I/P Details

• Manufacturer Part Number:

  MCP3008-I/P

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Package Description:

  0.300 INCH, PLASTIC, MS-001, DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  PDIP-16

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Analog Input Voltage-Max:

  5 V

• Conversion Time-Max:

  2.7778 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  19.177 mm

• Linearity Error-Max (EL):

  0.0977%

• Number of Analog In Channels:

  8

• Number of Bits:

  10

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.2 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Screening Level:

  TS 16949

• Seated Height-Max:

  5.334 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
