MCP33131-05-E/MS - Microchip

Description: Analog to Digital Converters - ADC 16-bit, 500 ksps, single channel, single-ended SAR ADC

Download MCP33131-05-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

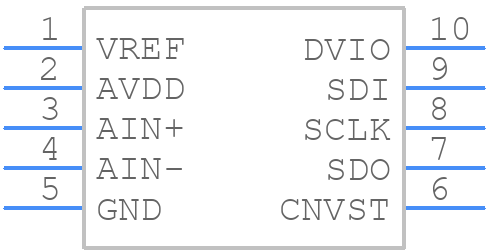

MCP33131-05-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33131-05-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - UN(MSOP)
click to zoom
3D Models
MCP33131-05-E/MS - Microchip - 3D model - Small Outline Packages - UN(MSOP)
click to zoom

MCP33131-05-E/MS Details

  • Manufacturer Part Number:

    MCP33131-05-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2018-11-28

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    1.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0091%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33131-05-E/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP33131-05-E/MS involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate measurements, it's essential to follow proper calibration procedures, use a stable reference voltage, and minimize noise and interference in the system. Additionally, ensure that the input signals are within the specified range and that the device is operated within its recommended operating conditions.
  • The maximum sampling rate of the MCP33131-05-E/MS is 1 Msps (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the device's settling time.
  • Yes, the MCP33131-05-E/MS can be used in a multi-channel application. However, it's essential to ensure that the device is properly multiplexed and that the input signals are properly routed to the correct channel. Additionally, consider the increased power consumption and thermal management requirements in multi-channel applications.
  • The MCP33131-05-E/MS has built-in overvoltage protection up to ±16.5V. However, it's still recommended to use external protection devices, such as TVS diodes or voltage clamps, to protect the device from voltage transients and spikes.
