MCP33131D-05-E/MN - Microchip

Description: Analog to Digital Converters - ADC 16-bit, 500 ksps, single channel, differential SAR ADC

Download MCP33131D-05-E/MN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

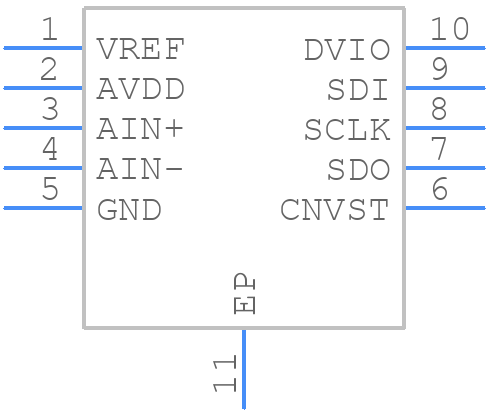

MCP33131D-05-E/MN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33131D-05-E/MN - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10 lead tdfn (mn)
click to zoom
3D Models
MCP33131D-05-E/MN - Microchip - 3D model - Small Outline No-lead - 10 lead tdfn (mn)
click to zoom

MCP33131D-05-E/MN Details

  • Manufacturer Part Number:

    MCP33131D-05-E/MN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    TDFN-10

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2018-11-14

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -5.1 V

  • Conversion Time-Max:

    1.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00915%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.5 MHz

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33131D-05-E/MN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP33131D-05-E/MN evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The MCP33131D-05-E/MN does not require calibration, as it is a digitally calibrated ADC. However, it's essential to follow the recommended layout and routing guidelines to minimize noise and ensure accurate readings.
  • The maximum sampling rate of the MCP33131D-05-E/MN is 1 Msps. To achieve this rate, ensure that the clock frequency is set to 32 MHz, and the SPI clock frequency is set to 10 MHz or higher. Additionally, optimize the SPI communication protocol to minimize overhead and ensure continuous conversion mode.
  • The MCP33131D-05-E/MN provides error flags and status registers that can be used to detect and handle errors, such as overflow, underflow, and CRC errors. Implement error handling routines in your firmware to detect and respond to these errors, and consider using interrupts to notify the system of errors.
  • Yes, the MCP33131D-05-E/MN can be used in a multi-channel configuration. To configure it, connect multiple devices in a daisy-chain configuration, and use the SPI interface to select the desired channel and configure the device. Refer to the datasheet and application notes for more information on multi-channel configuration and synchronization.
