MCP33131D-10-I/MS - Microchip

Description: Analog to Digital Converters - ADC 16-bit, 1 Msps, single channel, differential SAR ADC

Download MCP33131D-10-I/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

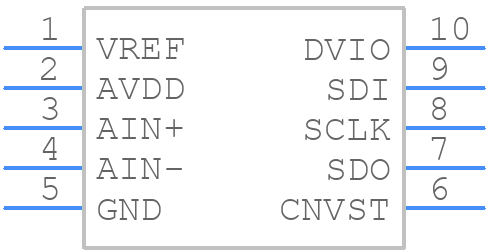

MCP33131D-10-I/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33131D-10-I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MCP33131D-10-I/MS
click to zoom
3D Models
MCP33131D-10-I/MS - Microchip - 3D model - Small Outline Packages - MCP33131D-10-I/MS
click to zoom

MCP33131D-10-I/MS Details

  • Manufacturer Part Number:

    MCP33131D-10-I/MS

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2018-03-09

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8.48

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    0.75 µs

  • Converter Type:

    ADC, FLASH/SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.4 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33131D-10-I/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP33131D-10-I/MS involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate measurements, it's essential to follow proper PCB layout guidelines, use a stable reference voltage, and minimize noise and interference. Additionally, calibrate the device using the built-in calibration registers, and use the internal offset and gain calibration features.
  • The maximum sampling rate of the MCP33131D-10-I/MS is 1 Msps (million samples per second) for the 10-bit mode and 500 ksps (kilosamples per second) for the 12-bit mode.
  • Yes, the MCP33131D-10-I/MS can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple channels. However, this may require additional external circuitry and careful consideration of channel-to-channel crosstalk and noise.
  • The MCP33131D-10-I/MS has built-in overvoltage protection up to ±16.5V. However, for applications requiring higher voltage protection, external protection circuits such as voltage clamps or zener diodes can be used.
