MCP33141-05-E/MS - Microchip

Description: Analog to Digital Converters - ADC 12-bit, 500 ksps, single channel, single-ended SAR ADC

Download MCP33141-05-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

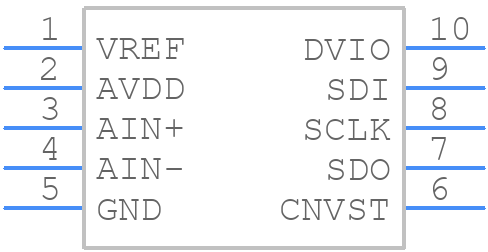

MCP33141-05-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33141-05-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS) [MSOP]
click to zoom
3D Models
MCP33141-05-E/MS - Microchip - 3D model - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS) [MSOP]
click to zoom

MCP33141-05-E/MS Details

  • Manufacturer Part Number:

    MCP33141-05-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2019-06-27

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -0.1 V

  • Conversion Time-Max:

    0.75 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33141-05-E/MS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP33141-05-E/MS evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate measurements.
  • The MCP33141-05-E/MS has an internal calibration mechanism, but it may require additional external calibration for specific applications. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers.
  • The maximum sampling rate of the MCP33141-05-E/MS is 1 Msps. Higher sampling rates can increase the noise performance, but may also increase the power consumption and reduce the accuracy. The optimal sampling rate depends on the specific application requirements.
  • The MCP33141-05-E/MS has built-in overvoltage and undervoltage protection, which can detect and respond to input voltages outside the specified range. The device will enter a high-impedance state and stop converting when an overvoltage or undervoltage condition is detected.
  • The typical power consumption of the MCP33141-05-E/MS is around 1.5 mA at 1 Msps. Power consumption can be minimized by reducing the sampling rate, using the power-down mode, and optimizing the external circuitry to reduce the current consumption.
