MCP33141-10-E/MS - Microchip

Description: Analog to Digital Converters - ADC 12-bit, 1 Msps, single channel, single-ended SAR ADC

Download MCP33141-10-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

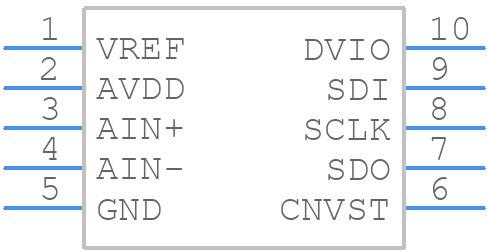

MCP33141-10-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33141-10-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS) [MSOP]-1
click to zoom
3D Models
MCP33141-10-E/MS - Microchip - 3D model - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS) [MSOP]-1
click to zoom

MCP33141-10-E/MS Details

  • Manufacturer Part Number:

    MCP33141-10-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2019-06-27

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -0.1 V

  • Conversion Time-Max:

    0.75 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33141-10-E/MS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP33141-10-E/MS evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate measurements.
  • The MCP33141-10-E/MS has an internal calibration mechanism, but additional calibration may be required for specific applications. Microchip provides a calibration procedure in the datasheet, which involves applying known input voltages and measuring the output codes to determine the gain and offset errors.
  • The maximum sampling rate of the MCP33141-10-E/MS is 1 Msps, but the actual sampling rate may be limited by the system clock frequency and the conversion mode. Higher sampling rates can increase the noise performance, but may also increase the power consumption and reduce the accuracy.
  • The MCP33141-10-E/MS has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. The OVP protects the device from input voltages up to 16V, while the UVLO prevents the device from operating below the minimum supply voltage of 2.7V.
  • Yes, the MCP33141-10-E/MS can be used in a multi-channel application by connecting multiple devices to a common bus. Synchronization can be achieved by using the SYNC pin to trigger the conversions simultaneously, or by using a separate clock signal for each device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP33141-10-E/MS Overview

Use the download button to access the MCP33141-10-E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP33, or try a keyword search, such as Analog to Digital Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
