Microchip provides a recommended PCB layout in the MCP33141D datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, it's recommended to follow general high-frequency PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
The MCP33141D has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve optimal accuracy. This can be done by applying a known input voltage and adjusting the ADC's offset and gain registers accordingly. Microchip provides an application note (AN1349) that provides a detailed calibration procedure.
The MCP33141D has a maximum sampling rate of 1 Msps, but this can be affected by the clock frequency, conversion mode, and other factors. In practice, the achievable sampling rate may be lower, depending on the specific application and system design. It's recommended to consult the datasheet and perform experiments to determine the optimal sampling rate for your specific use case.
Yes, the MCP33141D is a single-channel ADC, but it can be used in a multi-channel configuration by using multiple devices or by multiplexing the input signals. However, this will require additional external circuitry and may affect the overall system performance and accuracy.
The MCP33141D has built-in error detection mechanisms, such as CRC error detection and overflow detection. It's recommended to implement error handling routines in the system firmware to detect and respond to these errors. Additionally, it's important to follow proper system design practices, such as using watchdog timers and reset mechanisms, to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP33141D-05T-E/MS Overview

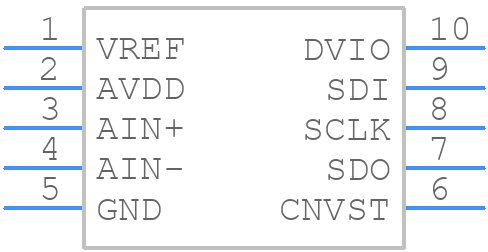

Use the download button to access the MCP33141D-05T-E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP33,
or try a keyword search, such as Analog to Digital Converters
