MCP33141D-10-E/MS - Microchip

Description: Analog to Digital Converters - ADC 12-bit,1 Msps, single channel, differential SAR ADC

Download MCP33141D-10-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

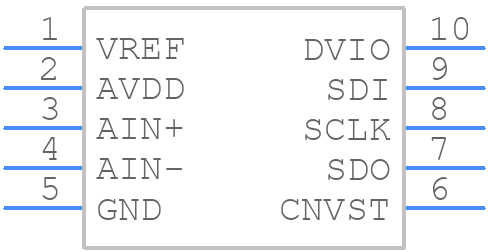

MCP33141D-10-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33141D-10-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS)
click to zoom
3D Models
MCP33141D-10-E/MS - Microchip - 3D model - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS)
click to zoom

MCP33141D-10-E/MS Details

  • Manufacturer Part Number:

    MCP33141D-10-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2019-06-27

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog Input Voltage-Max:

    5.2 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    0.75 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33141D-10-E/MS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the application note AN1653, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate readings.
  • Calibration of the MCP33141D-10-E/MS involves adjusting the internal gain and offset registers to compensate for manufacturing variations. Microchip provides a calibration procedure in the datasheet, which involves measuring the device's output voltage and adjusting the registers accordingly.
  • The maximum sampling rate of the MCP33141D-10-E/MS is 500 ksps. To configure the sampling rate, you need to set the appropriate values in the ADC control register (ADCCON) and the clock control register (CLKCON). Refer to the datasheet for the specific register settings and equations to calculate the sampling rate.
  • The MCP33141D-10-E/MS has internal overvoltage protection (OVP) and undervoltage protection (UVP) circuits that prevent damage to the device. However, it's still recommended to add external protection circuits, such as voltage clamps or resistors, to prevent overvoltage and undervoltage conditions from reaching the input pins.
  • The power consumption of the MCP33141D-10-E/MS depends on the operating mode and sampling rate. In normal operation, the device consumes around 1.5 mA. To reduce power consumption, you can use the device's low-power mode, which reduces the current consumption to around 10 μA. Additionally, you can use the shutdown mode to completely power down the device when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP33141D-10-E/MS Overview

Use the download button to access the MCP33141D-10-E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP33, or try a keyword search, such as Analog to Digital Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
