MCP33151D-10-E/MN - Microchip

Description: Analog to Digital Converters - ADC 14-bit,1 Msps, single channel, differential SAR ADC

Download MCP33151D-10-E/MN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

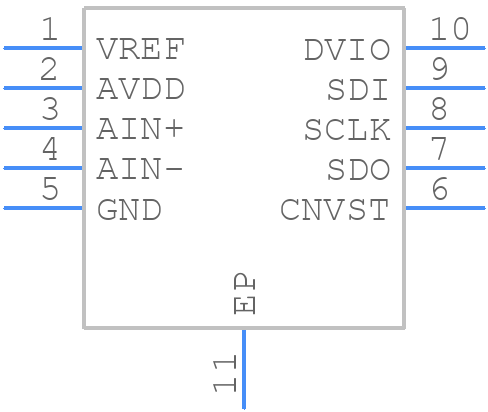

MCP33151D-10-E/MN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33151D-10-E/MN - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MCP79510T-I/MN
click to zoom
3D Models
MCP33151D-10-E/MN - Microchip - 3D model - Small Outline No-lead - MCP79510T-I/MN
click to zoom

MCP33151D-10-E/MN Details

  • Manufacturer Part Number:

    MCP33151D-10-E/MN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    TDFN-10

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-06-27

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog Input Voltage-Max:

    5.2 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    0.75 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.009155%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33151D-10-E/MN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP33151D-10-E/MN evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate measurements.
  • The MCP33151D-10-E/MN has an internal calibration mechanism, but it may require additional calibration for specific applications. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal accuracy.
  • The maximum sampling rate of the MCP33151D-10-E/MN is 1 Msps. To achieve this rate, the device must be operated in the 'Fast' mode, and the clock frequency must be set to 20 MHz. Additionally, the user must ensure that the input signal is properly filtered and that the device is properly configured for high-speed operation.
  • The MCP33151D-10-E/MN has built-in error detection mechanisms, such as overflow and underflow flags. The user can detect these errors by monitoring the device's status registers and taking appropriate action, such as resetting the device or adjusting the input signal range.
  • Yes, the MCP33151D-10-E/MN can be used in a multi-channel configuration by connecting multiple devices in a daisy-chain configuration. Each device can be addressed individually using the chip select (CS) pin, and the user can configure the devices to operate in a sequential or simultaneous sampling mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP33151D-10-E/MN Overview

Use the download button to access the MCP33151D-10-E/MN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP33, or try a keyword search, such as Analog to Digital Converters
