MCP3460RT-E/NC - Microchip

Description: • One Full-Differential or Two Single-Ended Input Channels: - Wide Input Voltage Range: 0V to AVDD - Internal Conversions Sequencer (Scan mode) for Automatic Multiplexing - One-Shot or Continuous Conversion Modes • Supply Voltage: - AVDD/DVDD: 2.7V - 3.6V • Second-Order Modulator with 5-level Quantizer plus: - Third-Order Decimation Filter for Low OSR (32-512) - Cascaded of Third-Order and First-Order Filters for High OSR (>512). • ADC Resolution: - MCP3460R: 16-bit - Selectable Oversampl

Download MCP3460RT-E/NC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

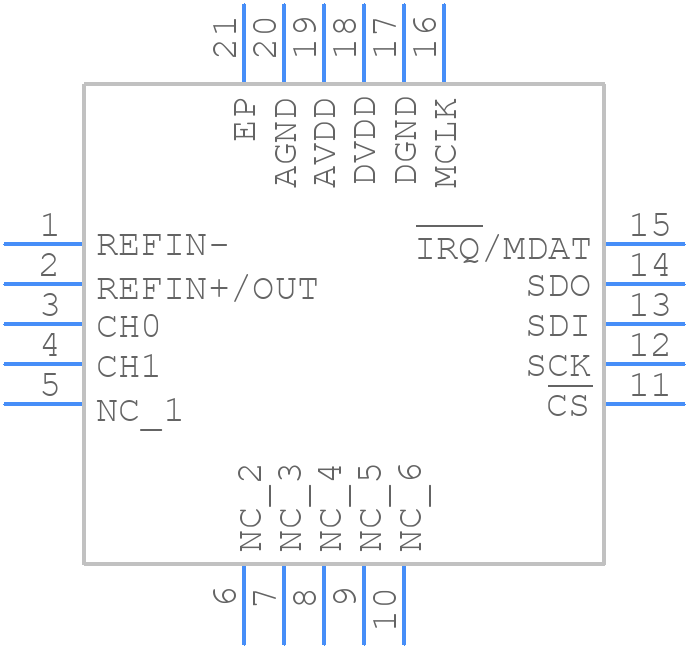

MCP3460RT-E/NC - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3460RT-E/NC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Very Thin Plastic Quad Flat, No Lead Package (2LX) - 3x3 mm Body [VQFN] With 1.7 mm Exposed Pad
click to zoom
3D Models
MCP3460RT-E/NC - Microchip - 3D model - Quad Flat No-Lead - 20-Lead Very Thin Plastic Quad Flat, No Lead Package (2LX) - 3x3 mm Body [VQFN] With 1.7 mm Exposed Pad
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MCP3460RT-E/NC
  • Part Number MCP3460RT-E/NC
  • Manufacturer Microchip
  • Pin Count 21
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - 20-Lead Very Thin Plastic Quad Flat, No Lead Package (2LX) - 3x3 mm Body [VQFN] With 1.7 mm Exposed Pad
  • Released Date May 21, 2025
  • Last Modified Date May 21, 2025 10:52 AM UTC
  • Pinout / Pin List Click Here (Member Only)

MCP3460RT-E/NC Details

  • Manufacturer Part Number:

    MCP3460RT-E/NC

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Microchip Technology Inc

  • Converter Type:

    ADC, DELTA-SIGMA
