MCP3461-E/ST - Microchip

Description: Analog to Digital Converters - ADC

Download MCP3461-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

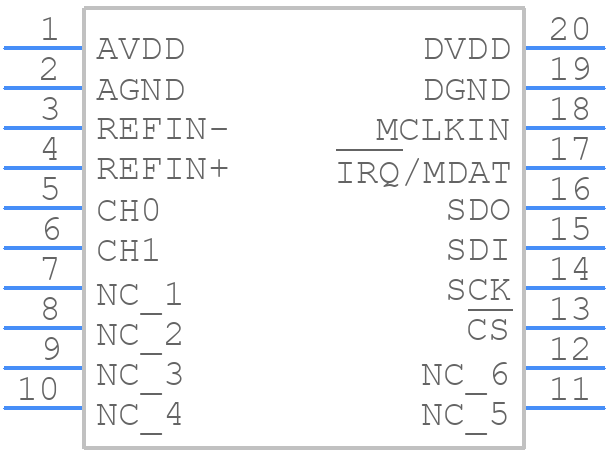

MCP3461-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3461-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP_20
click to zoom
3D Models
MCP3461-E/ST - Microchip - 3D model - Small Outline Packages - TSSOP_20
click to zoom

MCP3461-E/ST Details

  • Manufacturer Part Number:

    MCP3461-E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    TSSOP-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog Input Voltage-Max:

    3.7 V

  • Analog Input Voltage-Min:

    0.1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0032%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.1536 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.37 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MCP3461-E/ST Frequently Asked Questions (FAQs)

  • Microchip provides a layout and routing guide in their application note AN1451, which recommends separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and loops.
  • The MCP3461-E/ST has a built-in calibration feature. Refer to the datasheet section 4.4 'Calibration' for the calibration procedure. Additionally, Microchip provides an application note AN1349 that provides more detailed information on calibration and accuracy optimization.
  • The maximum sampling rate of the MCP3461-E/ST is 500 ksps (kilo-samples per second) in normal mode and 1 Msps (mega-samples per second) in turbo mode. However, the actual achievable sampling rate may be limited by the system's clock frequency, SPI communication speed, and other factors.
  • The MCP3461-E/ST outputs 24-bit unsigned binary data. The datasheet provides information on the output data format and scaling. Additionally, Microchip provides an application note AN1348 that explains how to handle the output data and perform scaling and offset corrections.
  • The datasheet provides information on the power-on reset and power-up sequencing requirements. In general, the VDD and VREF pins should be powered up simultaneously, and the CS pin should be held high during power-up. Refer to the datasheet section 4.1 'Power-On Reset' for more details.
