MCP3462RT-E/NC - Microchip

Description: Analog to Digital Converters - ADC 16-bit delta-sigma ADC w/Vref, Dual channel, 3V

Download MCP3462RT-E/NC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

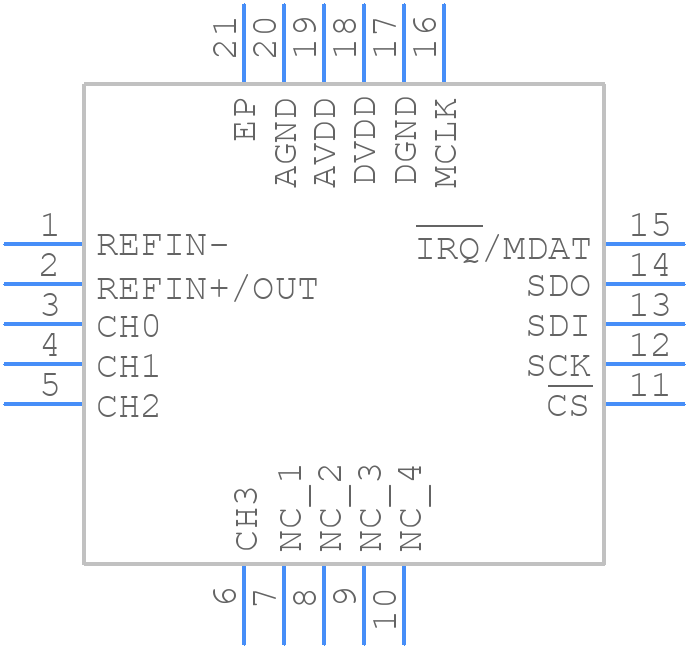

MCP3462RT-E/NC - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3462RT-E/NC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Ultra Thin Plastic Quad Flat, No Lead Package 1& - 3x3 mm Body [UQFN]
click to zoom
3D Models
MCP3462RT-E/NC - Microchip - 3D model - Quad Flat No-Lead - 20-Lead Ultra Thin Plastic Quad Flat, No Lead Package 1& - 3x3 mm Body [UQFN]
click to zoom

MCP3462RT-E/NC Details

  • Manufacturer Part Number:

    MCP3462RT-E/NC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    UQFN-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -3.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0032%

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.1536 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MCP3462RT-E/NC Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Decoupling capacitors should be placed as close as possible to the VDD and VSS pins. A dedicated analog ground plane is also recommended.
  • To optimize performance in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog signal, and consider using a common-mode filter. Additionally, ensure that the PCB layout is optimized for noise reduction.
  • The maximum sampling rate of the MCP3462RT-E/NC is 500 ksps. However, this rate can be affected by the clock source, analog input frequency, and other system-level factors.
  • Yes, the MCP3462RT-E/NC can operate with a 3.3V supply voltage. However, the device's performance may be affected, and the maximum sampling rate may be reduced. Consult the datasheet for specific details on operating conditions.
  • The MCP3462RT-E/NC has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing specific values to the device's registers. Consult the datasheet for specific calibration procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3462RT-E/NC Overview

Use the download button to access the MCP3462RT-E/NC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP34, or try a keyword search, such as Analog to Digital Converters
