MCP3462RT-E/ST - Microchip

Description: • One/Two/Four Differential or Two/Four/Eight Single-Ended Input Channels • 16-Bit Resolution • Programmable Data Rate: Up to 153.6 ksps • Programmable Gain: 0.33x to 64x • 97.2 dB SINAD, -116 dBc THD, 120 dBc SFDR (Gain = 1x, 4800 SPS) • Low-Temperature Drift: - Offset error drift: 4/Gain nV/°C (AZ_MUX = 1) - Gain error drift: 0.5 ppm/°C (Gain = 1x) • Low Noise: 2.3 µVRMS (Gain = 16x, 9600 SPS) • RMS Effective Resolution: 15.4 Bits Minimum (All Gains, All OSR Combinations) • Wide Input Voltage

Download MCP3462RT-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

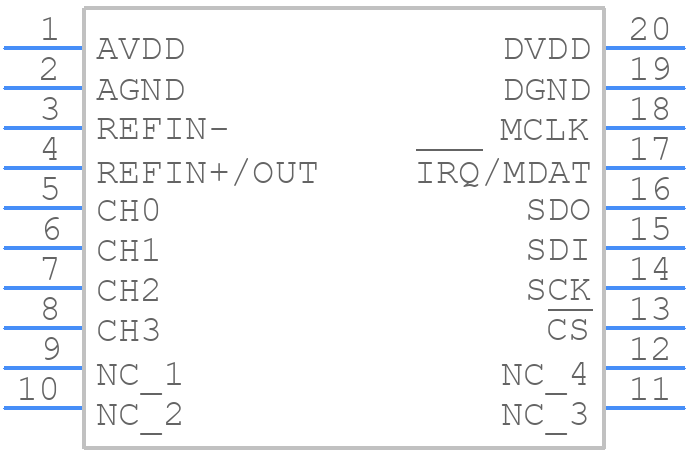

Symbol
MCP3462RT-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3462RT-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
MCP3462RT-E/ST - Microchip - 3D model - Small Outline Packages - TSSOP
click to zoom

MCP3462RT-E/ST Details

  • Manufacturer Part Number:

    MCP3462RT-E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    TSSOP-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -3.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0032%

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.1536 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MCP3462RT-E/ST Frequently Asked Questions (FAQs)

  • Microchip recommends following a star-grounding scheme, using a solid ground plane, and keeping analog and digital signals separate to minimize noise. Additionally, use short and direct traces for the analog inputs and outputs, and avoid routing digital signals near the analog signals.
  • Calibration involves adjusting the gain and offset of the ADC to match the specific application requirements. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the gain and offset registers to achieve the desired output code.
  • The maximum sampling rate of the MCP3462RT-E/ST is 500 ksps. As the sampling rate increases, the power consumption also increases. To minimize power consumption, it is recommended to use the lowest sampling rate required for the application.
  • The MCP3462RT-E/ST has built-in overvoltage protection up to 5V. For undervoltage conditions, it is recommended to use a voltage clamp or a voltage limiter circuit to prevent damage to the ADC. Additionally, consider using a voltage regulator to ensure a stable voltage supply to the ADC.
  • The recommended power-up sequence is to apply the analog voltage (VDDA) first, followed by the digital voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation.
