MCP3464R-E/ST footprint, schematic symbol and 3D model by Microchip

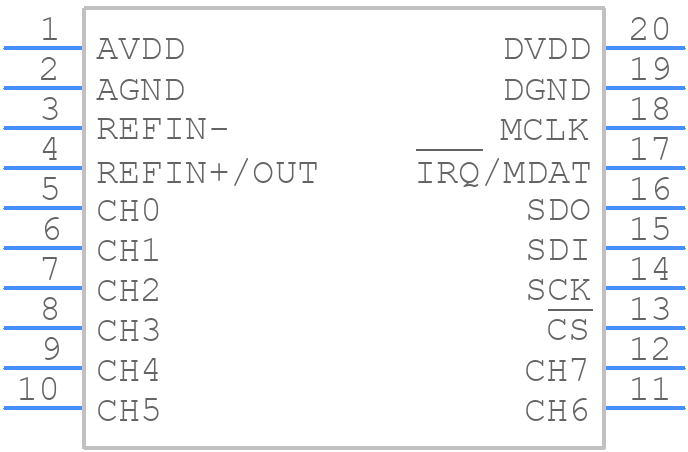

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCP3464R-E/ST
Part Number MCP3464R-E/ST
Manufacturer Microchip
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - (ST)20-Lead(TSSOP)
Released Date Mar 14, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MCP3464R-E/ST Details

Manufacturer Part Number:
MCP3464R-E/ST
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
20
Manufacturer Package Code:
TSSOP-20
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
2 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
19
Analog Input Voltage-Max:
3.6 V
Analog Input Voltage-Min:
-3.6 V
Converter Type:
ADC, DELTA-SIGMA
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
6.5 mm
Linearity Error-Max (EL):
0.0032%
Number of Analog In Channels:
8
Number of Bits:
16
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
2'S COMPLEMENT BINARY
Output Format:
SERIAL
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Sample Rate:
0.1536 MHz
Sample and Hold / Track and Hold:
SAMPLE
Seated Height-Max:
1.2 mm
Supply Current-Max:
2.5 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

MCP3464R-E/ST Frequently Asked Questions (FAQs)

A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin. Refer to the Microchip application note AN1349 for more details.
The MCP3464R-E/ST has an internal calibration mechanism. To calibrate, apply a known input voltage to the ADC input, then use the CALIBRATE command to initiate the calibration process. The device will adjust its internal gain and offset to achieve optimal accuracy. Refer to the datasheet section 5.4 for more details.
The maximum sampling rate of the MCP3464R-E/ST is 500 ksps. As the sampling rate increases, the power consumption also increases. To minimize power consumption, use the lowest sampling rate required for your application. Refer to the datasheet section 5.1 for more details.
To enter sleep mode, set the SLEEP bit in the CONTROL register. To wake up, set the WAKEUP bit in the CONTROL register. During sleep mode, the device consumes very low power. Refer to the datasheet section 5.5 for more details.
The recommended input signal range is 0 to VREF (2.5V or 5V), and the input impedance should be less than 1 kΩ. Use an anti-aliasing filter if necessary to prevent aliasing. Refer to the datasheet section 5.2 for more details.

Trust Checks

Community Provided

System Verified

Community Approved

MCP3464R-E/ST Overview

Use the download button to access the MCP3464R-E/ST schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MCP34, or try a keyword search, such as Analog to Digital Converters
