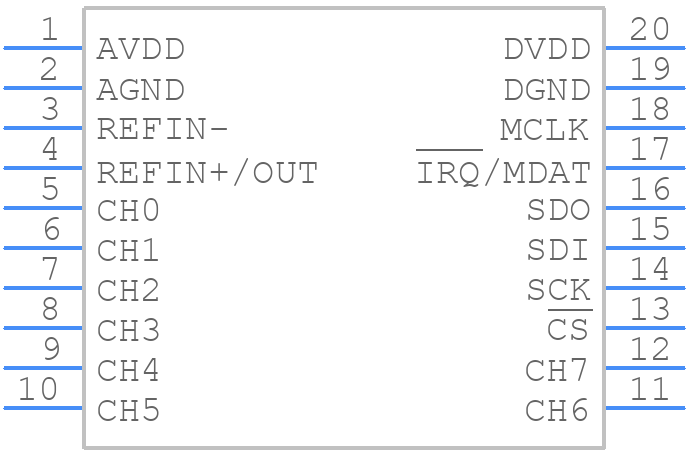

MCP3464RT-E/ST - Microchip

MCP3464RT-E/ST Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the MCP3464RT-E/ST to minimize noise and ensure optimal performance?
  Microchip recommends following a star-grounding scheme, using a solid ground plane, and keeping analog and digital signals separate to minimize noise. Additionally, use short and direct traces for the analog inputs and outputs, and avoid running digital signals near the analog signals.
• How do I calibrate the MCP3464RT-E/ST to achieve optimal performance?
  Calibration involves adjusting the gain and offset of the ADC to match the specific application requirements. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the gain and offset registers to achieve the desired output code.
• What is the maximum sampling rate of the MCP3464RT-E/ST, and how does it affect the power consumption?
  The maximum sampling rate of the MCP3464RT-E/ST is 500 ksps. As the sampling rate increases, the power consumption also increases. To minimize power consumption, it is recommended to use the lowest sampling rate required for the application.
• How do I handle overvoltage and undervoltage conditions on the analog inputs of the MCP3464RT-E/ST?
  The MCP3464RT-E/ST has built-in overvoltage protection up to 5V, but it is still recommended to use external protection circuitry, such as voltage dividers or clamp circuits, to prevent damage from excessive input voltages. For undervoltage conditions, it is recommended to use a voltage reference or a buffer amplifier to ensure a stable input voltage.
• Can I use the MCP3464RT-E/ST in a multi-channel application, and how do I synchronize the conversions?
  Yes, the MCP3464RT-E/ST can be used in a multi-channel application. To synchronize the conversions, use the SYNC pin to trigger the conversions on multiple devices. Ensure that the SYNC signal is properly routed and terminated to prevent signal degradation.
