MCP3465RT-E/SFX - Microchip

Description: Analog to Digital Converters - ADC 16-bit delta-sigma ADC w/Vref, Single channel, 3V

Download MCP3465RT-E/SFX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

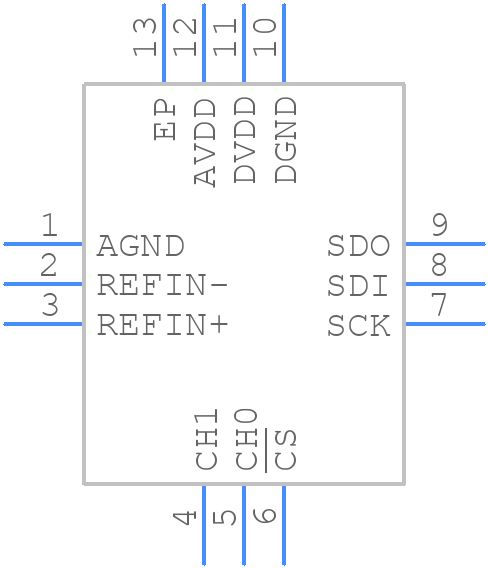

Symbol
MCP3465RT-E/SFX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3465RT-E/SFX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead Ultra Thin Plastic Quad Flat, No Lead Package (SFX) - 2x2 mm Body [UQFN]
click to zoom
3D Models
MCP3465RT-E/SFX - Microchip - 3D model - Quad Flat No-Lead - 12-Lead Ultra Thin Plastic Quad Flat, No Lead Package (SFX) - 2x2 mm Body [UQFN]
click to zoom

MCP3465RT-E/SFX Details

  • Manufacturer Part Number:

    MCP3465RT-E/SFX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    UQFN-12

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -2.7 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0032%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.1536 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

MCP3465RT-E/SFX Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Decoupling capacitors should be placed as close as possible to the VDD and VSS pins. A dedicated analog ground plane is also recommended.
  • To optimize performance in noisy environments, use a low-pass filter on the analog input, ensure a clean power supply, and use a shielded cable for the analog signal. Additionally, consider using a common-mode filter or a differential amplifier to reduce common-mode noise.
  • The maximum sampling rate of the MCP3465RT-E/SFX is 500 ksps. However, this rate can be affected by the clock source, analog input bandwidth, and digital interface used.
  • Yes, the MCP3465RT-E/SFX can operate with a 3.3V power supply. However, the device's performance may be affected, and the maximum sampling rate may be reduced. Consult the datasheet for specific details on operating conditions and performance at 3.3V.
  • The MCP3465RT-E/SFX has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and reading the corresponding digital output code. The device can then be calibrated using an external microcontroller or DSP.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3465RT-E/SFX Overview

Use the download button to access the MCP3465RT-E/SFX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP34, or try a keyword search, such as Analog to Digital Converters
