MCP3551-E/MS - Microchip

Description: Microchip MCP3551-E/MS, 22 bit Serial ADC, Differential Input, 8-Pin MSOP

Download MCP3551-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

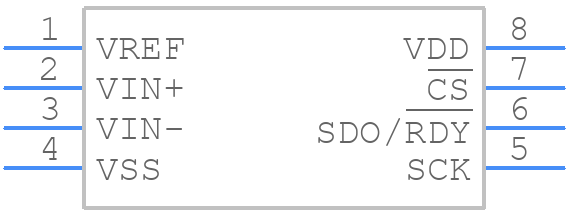

Symbol
MCP3551-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3551-E/MS - Microchip PCB footprint - Other - Other - MCP3551-E/MS-2
click to zoom
3D Models
MCP3551-E/MS - Microchip - 3D model - Other - MCP3551-E/MS-2
click to zoom

MCP3551-E/MS Details

  • Manufacturer Part Number:

    MCP3551-E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    73457.3 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    22

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.02816 MHz

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP3551-E/MS Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for the analog inputs and outputs, and avoid crossing digital signals over the analog signals.
  • Calibration involves adjusting the internal offset and gain of the ADC. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly.
  • The maximum sampling rate of the MCP3551-E/MS is 200 ksps. As the sampling rate increases, the power consumption also increases. However, the power consumption can be reduced by using the device's power-down modes or by reducing the clock frequency.
  • The MCP3551-E/MS has internal overvoltage protection up to 5V. However, it's recommended to use external protection circuitry, such as voltage dividers or clamp circuits, to prevent damage from higher voltage transients.
  • Yes, the MCP3551-E/MS can be used in a multiplexed configuration. To do so, connect multiple analog inputs to the device and use the MUX registers to select the desired input channel. The device will then convert the selected input and store the result in the conversion register.
