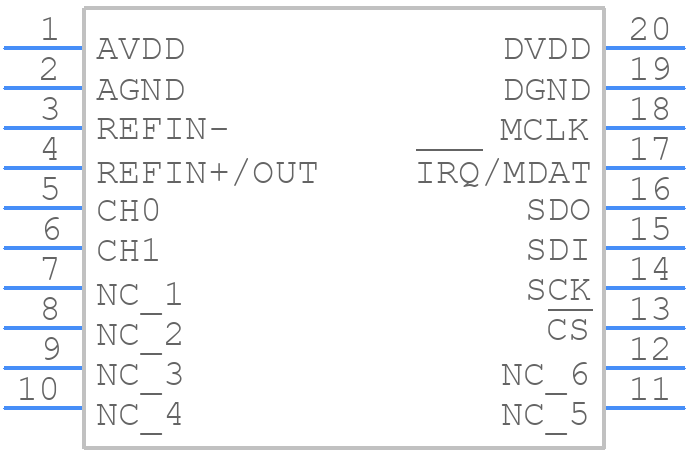

MCP3561RT-E/ST - Microchip

MCP3561RT-E/ST Details

• Manufacturer Part Number:

  MCP3561RT-E/ST

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  20

• Manufacturer Package Code:

  TSSOP-20

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  19

• Analog Input Voltage-Max:

  3.6 V

• Analog Input Voltage-Min:

  -2.7 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Linearity Error-Max (EL):

  0.0032%

• Number of Analog In Channels:

  2

• Number of Bits:

  24

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  2'S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Sample Rate:

  0.1536 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
