MCP3561T-E/ST - Microchip

Description: Analog to Digital Converters - ADC 24-bit delta-sigma ADC, Single channel, 3V

Download MCP3561T-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

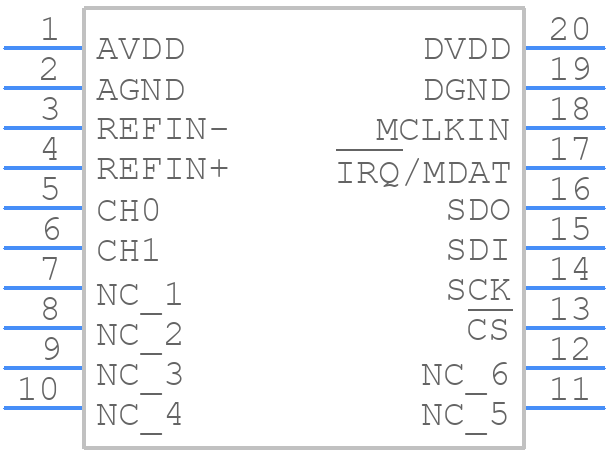

MCP3561T-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3561T-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (ST)20-Lead(TSSOP)
click to zoom
3D Models
MCP3561T-E/ST - Microchip - 3D model - Small Outline Packages - (ST)20-Lead(TSSOP)
click to zoom

MCP3561T-E/ST Details

  • Manufacturer Part Number:

    MCP3561T-E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    TSSOP-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    2.7 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.1536 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MCP3561T-E/ST Frequently Asked Questions (FAQs)

  • It is recommended to separate the analog and digital grounds and connect them at a single point, usually near the power supply. This helps to reduce noise and interference. Additionally, use a star-grounding configuration and avoid routing digital signals near the analog signals.
  • To optimize the ADC's performance, ensure proper PCB layout, use a low-noise power supply, and minimize electromagnetic interference (EMI). Also, consider using a filter or averaging technique to reduce noise, and adjust the ADC's sampling rate and resolution according to your application's requirements.
  • The recommended power-up sequence is to first apply the analog power supply (VDDA), followed by the digital power supply (VDD), and then the clock signal. This ensures proper initialization and prevents latch-up or other issues.
  • The internal voltage reference can be enabled or disabled using the VREFEN pin. When enabled, the internal reference is used as the ADC's voltage reference. Ensure proper bypassing of the VREF pin and follow the recommended layout guidelines to minimize noise and ensure accurate conversions.
  • The maximum allowed capacitance on the analog input pins is 10nF. Exceeding this value can affect the ADC's performance and accuracy. Keep the capacitance as low as possible and use a buffer amplifier if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3561T-E/ST Overview

Use the download button to access the MCP3561T-E/ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP35, or try a keyword search, such as Analog to Digital Converters
