MCP3562-E/ST - Microchip

Description: MICROCHIP - MCP3562-E/ST. - ADC, SIG-DELTA, 24BIT, 153.6KSPS/TSSOP

Download MCP3562-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

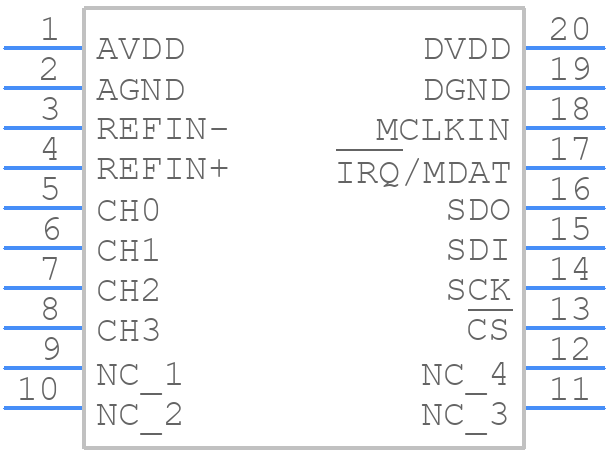

MCP3562-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3562-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Plastic Thin Shrink Small Outline (ST) - 4.4mm body [TSSOP]
click to zoom
3D Models
MCP3562-E/ST - Microchip - 3D model - Small Outline Packages - 20-Lead Plastic Thin Shrink Small Outline (ST) - 4.4mm body [TSSOP]
click to zoom

MCP3562-E/ST Details

  • Manufacturer Part Number:

    MCP3562-E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    TSSOP-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    2.7 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.1536 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MCP3562-E/ST Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. The input signals should be routed close to the ADC pins, and the reference voltage should be decoupled with a 10uF capacitor. Additionally, the PCB should be designed to minimize thermal gradients and electromagnetic interference.
  • The MCP3562-E/ST has an internal calibration mechanism that can be used to correct for offset and gain errors. The calibration process involves applying a known input voltage and reading the output code, then adjusting the internal calibration registers to minimize the error. Microchip provides a calibration routine in their application notes and software libraries.
  • The maximum sampling rate of the MCP3562-E/ST is 153.6 kSPS. However, the power consumption increases with the sampling rate. At the maximum sampling rate, the power consumption is around 1.4 mA, while at lower sampling rates (e.g. 38.4 kSPS), the power consumption can be as low as 0.7 mA.
  • The MCP3562-E/ST has an overrange detection feature that can be used to detect when the input signal exceeds the maximum input range. When an overrange condition is detected, the ADC output code will be clamped to the maximum or minimum value, and the OR flag will be set. The user can then take action to adjust the input signal or adjust the gain of the amplifier preceding the ADC.
  • Yes, the MCP3562-E/ST can be used in a multi-channel application. The device has a built-in multiplexer that can be configured to select one of four analog input channels. The multiplexer is controlled by the CH0-CH3 pins, which can be set high or low to select the desired channel. The channel selection can be done using a microcontroller or other digital logic.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3562-E/ST Overview

Use the download button to access the MCP3562-E/ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP35, or try a keyword search, such as Analog to Digital Converters
