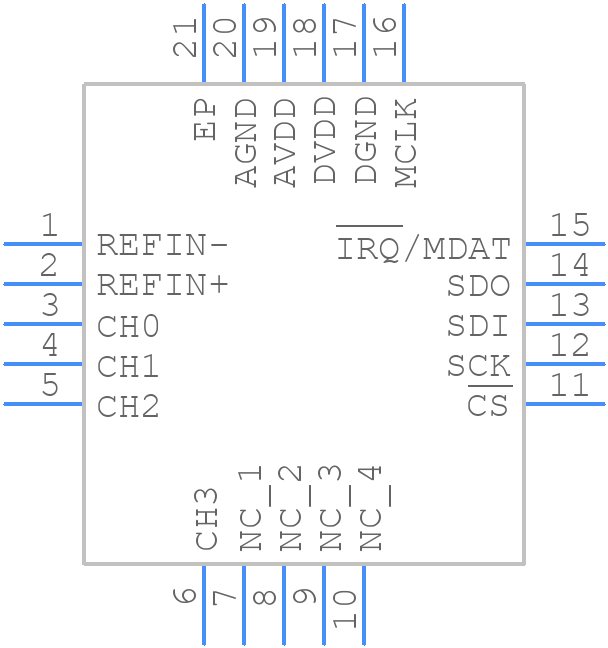

MCP3562T-E/NC - Microchip

MCP3562T-E/NC Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the MCP3562T-E/NC to minimize noise and ensure accurate readings?
  Microchip recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. Also, use short and direct traces for the analog inputs, and avoid running digital signals near the analog inputs.
• How do I calibrate the MCP3562T-E/NC to achieve the highest accuracy?
  Calibration involves adjusting the offset and gain of the ADC. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers to achieve the desired accuracy.
• What is the maximum sampling rate of the MCP3562T-E/NC, and how does it affect the power consumption?
  The maximum sampling rate of the MCP3562T-E/NC is 153.6 kSPS. The power consumption increases with the sampling rate, so it's essential to balance the sampling rate with power consumption requirements.
• How do I handle overvoltage and undervoltage conditions on the analog inputs of the MCP3562T-E/NC?
  Use external voltage limiting circuits, such as voltage dividers or clamping diodes, to protect the analog inputs from overvoltage conditions. For undervoltage conditions, use a voltage reference or a buffer amplifier to ensure a stable input voltage.
• What is the effect of temperature on the accuracy and performance of the MCP3562T-E/NC?
  Temperature affects the offset, gain, and noise performance of the ADC. Microchip provides temperature coefficients for the offset and gain in the datasheet. It's essential to consider temperature effects when designing the system and to use temperature compensation techniques if necessary.
