MCP3564-E/ST - Microchip

Description: Analog to Digital Converters - ADC

Download MCP3564-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

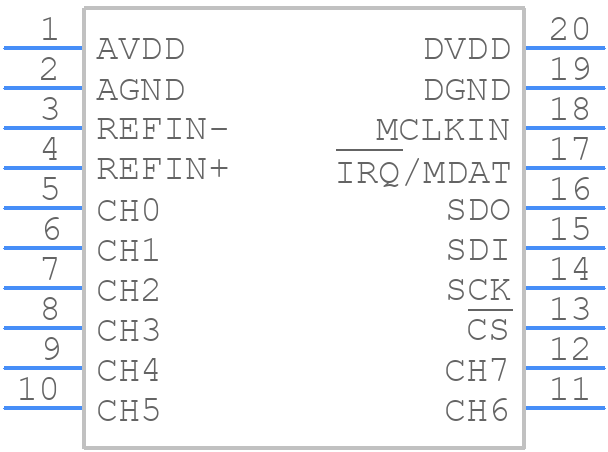

MCP3564-E/ST - Microchip - PCB symbol
