MCP3565RT-E/SFX - Microchip

Description: Analog to Digital Converters - ADC 24-bit delta-sigma ADC w/Vref, Single channel, 3V

Download MCP3565RT-E/SFX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

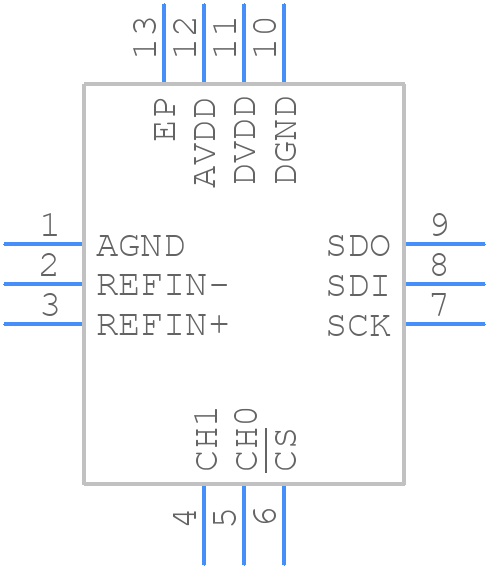

MCP3565RT-E/SFX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3565RT-E/SFX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead Ultra Thin Plastic Quad Flat, No Lead Package (SFX) - 2x2 mm Body [UQFN]
click to zoom
3D Models
MCP3565RT-E/SFX - Microchip - 3D model - Quad Flat No-Lead - 12-Lead Ultra Thin Plastic Quad Flat, No Lead Package (SFX) - 2x2 mm Body [UQFN]
click to zoom

MCP3565RT-E/SFX Details

  • Manufacturer Part Number:

    MCP3565RT-E/SFX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    UQFN-12

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -2.7 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0032%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.1536 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

MCP3565RT-E/SFX Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Decoupling capacitors should be placed as close as possible to the VDD and VSS pins. A dedicated analog ground plane is also recommended to reduce noise coupling.
  • The MCP3565RT-E/SFX has an internal calibration mechanism that can be triggered through the CAL bit in the CONFIG1 register. Additionally, users can perform external calibration by applying a known input voltage and adjusting the offset and gain registers accordingly.
  • The maximum sampling rate of the MCP3565RT-E/SFX is 500 ksps. However, the power consumption increases with the sampling rate. At 500 ksps, the typical power consumption is around 1.4 mA, while at 100 ksps, it is around 0.7 mA.
  • The MCP3565RT-E/SFX has built-in overvoltage and undervoltage detection capabilities. The OVREF and UVREF pins can be used to detect overvoltage and undervoltage conditions, respectively. Additionally, the device can be configured to generate an interrupt or reset when an overvoltage or undervoltage condition is detected.
  • The recommended input impedance for the MCP3565RT-E/SFX is less than 1 kΩ. Higher input impedance can lead to reduced accuracy and increased noise sensitivity. It is recommended to use a buffer amplifier or an impedance-matching network to ensure a low input impedance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3565RT-E/SFX Overview

Use the download button to access the MCP3565RT-E/SFX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP35, or try a keyword search, such as Analog to Digital Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
