MCP3901A0-E/SS - Microchip

Description: Dual Channel Energy Meter Front End

Download MCP3901A0-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

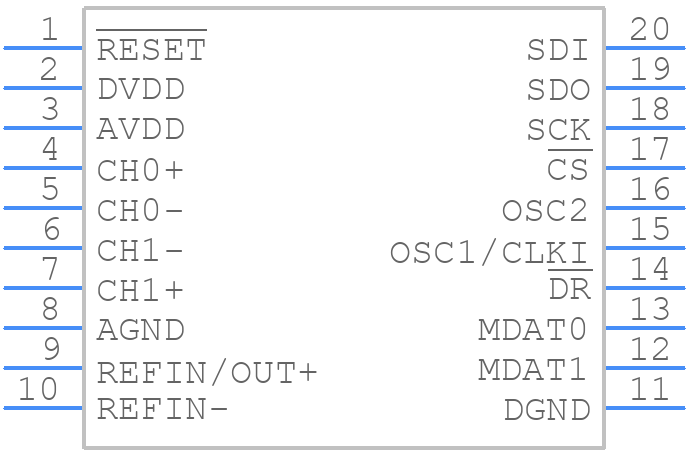

MCP3901A0-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3901A0-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SS)20-lead(SSOP)
click to zoom
3D Models
MCP3901A0-E/SS - Microchip - 3D model - Small Outline Packages - (SS)20-lead(SSOP)
click to zoom

MCP3901A0-E/SS Details

  • Manufacturer Part Number:

    MCP3901A0-E/SS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    5.30 MM, ROHS COMPLIANT, PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SSOP-20

  • Country Of Origin:

    Philippines, Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm

MCP3901A0-E/SS Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. Additionally, use short and direct traces for the analog inputs and outputs, and avoid running digital signals near the analog signals.
  • Calibration involves adjusting the gain and offset of the ADC. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the gain and offset registers to achieve the desired accuracy.
  • The maximum sampling rate of the MCP3901A0-E/SS is 200 ksps. Increasing the sampling rate will increase the power consumption, but the device can operate at lower sampling rates to reduce power consumption. The power consumption can be estimated using the formula provided in the datasheet.
  • The MCP3901A0-E/SS has built-in overvoltage protection up to 5V, but it's still recommended to use external protection circuitry such as voltage dividers or clamping diodes to prevent damage. For undervoltage conditions, the device has a built-in brown-out detector that can be used to detect and respond to low voltage conditions.
  • Yes, the MCP3901A0-E/SS can be used in a multi-channel configuration. To synchronize the conversions, use the SYNC pin to trigger the conversions on multiple devices. The devices can be connected in a daisy-chain configuration, and the SYNC pin can be used to cascade the conversions.
