MCP3903-E/SS - Microchip

Description: Six Channel Delta Sigma A/D Converter

Download MCP3903-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

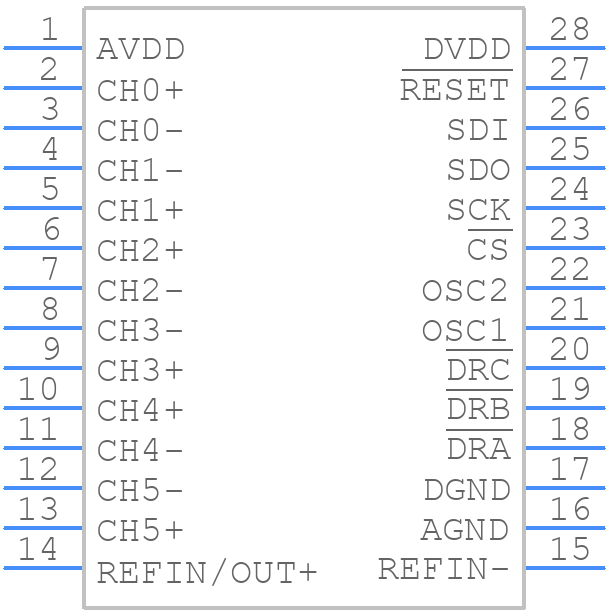

MCP3903-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3903-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]_2024
click to zoom
3D Models
MCP3903-E/SS - Microchip - 3D model - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]_2024
click to zoom

MCP3903-E/SS Details

  • Manufacturer Part Number:

    MCP3903-E/SS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog Input Voltage-Max:

    1 V

  • Analog Input Voltage-Min:

    -1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.064 MHz

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

MCP3903-E/SS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended layout and routing guide in the MCP3903-E/SS datasheet, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The MCP3903-E/SS has an internal calibration mechanism, but it may require external calibration for high-accuracy applications. Microchip provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers.
  • The maximum input voltage range for the MCP3903-E/SS is ±650 mV, but it can be extended to ±1000 mV with external attenuation. However, it's essential to ensure that the input voltage does not exceed the absolute maximum rating of ±1.2 V to prevent damage to the device.
  • The MCP3903-E/SS has internal overvoltage protection, but it's recommended to add external protection circuitry, such as a voltage clamp or a transient voltage suppressor, to protect the device from high-voltage transients and surges.
  • The recommended power-up sequence for the MCP3903-E/SS is to apply the analog power supply (AVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry to prevent any potential latch-up conditions.
