- Part Number MCP3906A-I/SS
- Manufacturer Microchip
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (SS)24-Lead(SSOP)
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP3906A-I/SS Details
-
Manufacturer Part Number:
MCP3906A-I/SS
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SSOP
-
Package Description:
5.30 MM, LEAD FREE, PLASTIC, SSOP-24
-
Pin Count:
24
-
Manufacturer Package Code:
SSOP-24
-
Country Of Origin:
Malaysia, Philippines, Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
6 Weeks
MCP3906A-I/SS Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout in the MCP3906A datasheet (Section 5.0) and in the application note AN1349. It's essential to follow these guidelines to minimize noise and ensure accurate measurements.
-
Calibration involves adjusting the gain and offset of the ADC to match the specific application requirements. Microchip provides a calibration procedure in the datasheet (Section 4.0) and in the application note AN1349. Additionally, the MCP3906A Evaluation Board provides a calibration tool to simplify the process.
-
The maximum sampling rate of the MCP3906A-I/SS is 100 kSPS. Higher sampling rates can lead to increased noise and decreased measurement accuracy. It's essential to choose a sampling rate that balances measurement speed with accuracy requirements.
-
The MCP3906A-I/SS has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. OVP protects the device from input voltages up to 7 V, while UVLO prevents the device from operating below 2.7 V. However, it's still essential to add external protection circuitry to ensure the device operates within the recommended voltage range.
-
Yes, the MCP3906A-I/SS can be used in a multi-channel configuration. To synchronize the measurements, use the SYNC pin to trigger the conversions simultaneously across multiple devices. Microchip provides more information on multi-channel operation in the datasheet (Section 3.0) and in the application note AN1349.
Trust Checks
Community Provided
System Verified
Community Approved
MCP3906A-I/SS Overview

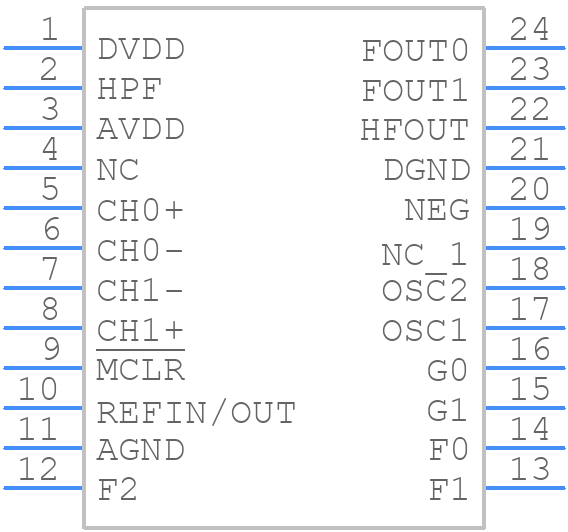

Use the download button to access the MCP3906A-I/SS schematic symbol, PCB footprint, and 3D model.
