MCP39F511N-E/MQ - Microchip

Description: Microchip MCP39F511N-E/MQ Energy Measurement IC, 10 bit, 28-Pin QFN

Download MCP39F511N-E/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

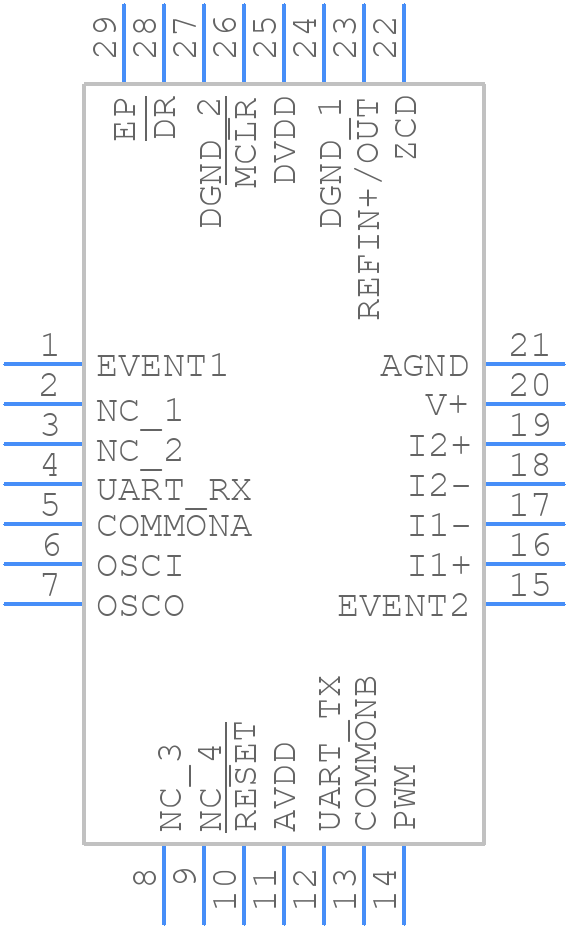

MCP39F511N-E/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP39F511N-E/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom
3D Models
MCP39F511N-E/MQ - Microchip - 3D model - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom

MCP39F511N-E/MQ Details

  • Manufacturer Part Number:

    MCP39F511N-E/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    QFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MCP39F511N-E/MQ Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the VREG pin is 50 mA. This is not explicitly stated in the datasheet, but it's a common question among engineers.
  • The configuration of the MCP39F511N-E/MQ for a specific metering application depends on the specific requirements of the application. Engineers should refer to the application notes and design guides provided by Microchip Technology Inc. for guidance on configuring the device for their specific use case.
  • The internal oscillator of the MCP39F511N-E/MQ has an accuracy of ±2% over the operating temperature range of -40°C to 125°C. This information is not explicitly stated in the datasheet, but it's a common question among engineers.
  • Yes, the MCP39F511N-E/MQ can be used for polyphase metering applications. The device has multiple channels that can be used to measure voltage and current in multiple phases. However, engineers should ensure that the device is properly configured and calibrated for their specific application.
  • The maximum voltage that can be applied to the analog input pins of the MCP39F511N-E/MQ is VCC + 0.3V. This is stated in the datasheet, but it's a common question among engineers to ensure that they don't exceed the maximum voltage rating.
