MCP41HV51-104E/ST - Microchip

Description: Digital Potentiometer 100k Ohm 1 Circuit 256 Taps SPI Interface 14-TSSOP Voltage - Supply 1.8V ~ 5.5V, 10V ~ 36V, ±5V ~ 18V -40°C ~ 125°C

Download MCP41HV51-104E/ST Model

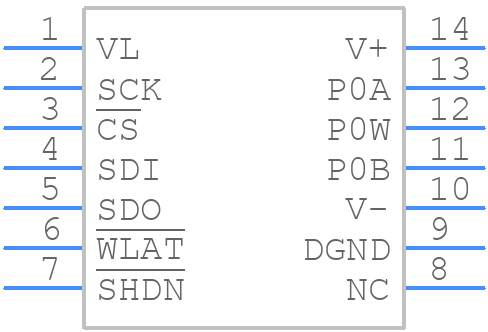

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCP41HV51-104E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Plastic Thin Shrink Small Outline (ST) - 4.4 mm Body [TSSOP]
click to zoom
3D Models
MCP41HV51-104E/ST - Microchip  - 3D model - Small Outline Packages - 14-Lead Plastic Thin Shrink Small Outline (ST) - 4.4 mm Body [TSSOP]
click to zoom

MCP41HV51-104E/ST Details

  • Manufacturer Part Number:

    MCP41HV51-104E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, PLASTIC, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bandwidth-Nom:

    0.48 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    18 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    100 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

MCP41HV51-104E/ST Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP41HV51-104E/ST involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliability in high-temperature applications, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive interface material, and keeping the device within its recommended operating temperature range.
  • The MCP41HV51-104E/ST has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging.
  • To troubleshoot issues with the MCP41HV51-104E/ST, start by verifying the input voltage and current, checking for proper PCB layout and component placement, and ensuring that the device is operated within its recommended specifications. Use a multimeter or oscilloscope to measure the output voltage and current, and consult the datasheet for troubleshooting guidelines.
  • Yes, the MCP41HV51-104E/ST can be used in a switching regulator application, but it is essential to ensure that the device is operated within its recommended specifications and that the switching frequency is within the recommended range. Additionally, proper PCB layout and component selection are crucial to minimize electromagnetic interference (EMI) and ensure reliable operation.
