MCP4362-103E/ST - Microchip

Description: 8 bit Digital Potentiometers, 10k, SPI

Download MCP4362-103E/ST Model

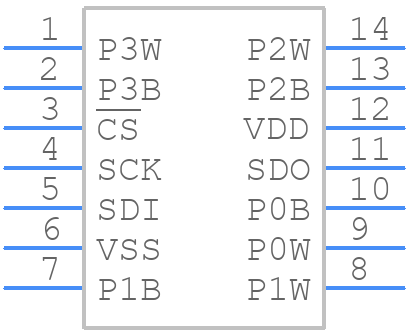

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCP4362-103E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom
3D Models
MCP4362-103E/ST - Microchip  - 3D model - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom

MCP4362-103E/ST Details

  • Manufacturer Part Number:

    MCP4362-103E/ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 MM, PLASTIC, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    1 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Positions:

    257

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    4.4 mm

MCP4362-103E/ST Frequently Asked Questions (FAQs)

  • Microchip recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the device's power supply pins (VDD and VSS) as close as possible to the device, and use a 10uF capacitor between VDD and VSS to filter out noise.
  • The MCP4362-103E/ST has an internal calibration mechanism, but it may require additional calibration for specific applications. Microchip recommends following the calibration procedure outlined in the datasheet, and using the device's built-in calibration registers to fine-tune the performance. Additionally, consider using an external calibration circuit or a calibration routine in the microcontroller to ensure optimal performance.
  • The maximum operating frequency of the MCP4362-103E/ST is 50 kHz, but it can be operated at higher frequencies with reduced performance. Operating the device at higher frequencies can result in increased noise, reduced accuracy, and decreased stability. Microchip recommends operating the device within the recommended frequency range to ensure optimal performance.
  • The MCP4362-103E/ST has a built-in POR and BOR feature to ensure the device resets properly during power-up and brown-out conditions. Microchip recommends using an external capacitor to filter out noise on the power supply lines, and ensuring the device's power supply voltage is stable before enabling the device. Additionally, consider using a voltage supervisor or a reset controller to handle power-on and brown-out conditions.
  • Microchip recommends using a SPI or I2C interface to communicate with the MCP4362-103E/ST, depending on the specific application requirements. For SPI, use a clock frequency of up to 10 MHz, and ensure the CS pin is properly controlled. For I2C, use a clock frequency of up to 400 kHz, and ensure the device is properly addressed and configured.
