MCP4642-103E/UN - Microchip

Description: Dig.Potentiometer 2ch 10k 129 I2C MSOP10

Download MCP4642-103E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

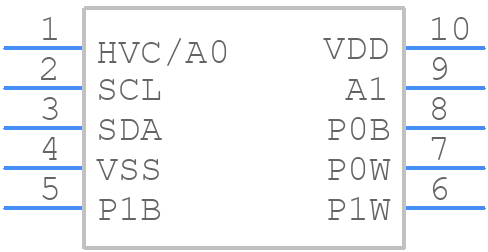

Symbol
MCP4642-103E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4642-103E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - UN(MSOP)
click to zoom
3D Models
MCP4642-103E/UN - Microchip - 3D model - Small Outline Packages - UN(MSOP)
click to zoom

MCP4642-103E/UN Details

  • Manufacturer Part Number:

    MCP4642-103E/UN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    NON-VOLATILE MEMORY

  • Bandwidth-Nom:

    1 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Positions:

    129

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

MCP4642-103E/UN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended layout and routing guide in their application note AN1348, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure reliable operation.
  • A safe shutdown procedure can be implemented by ensuring that the VDD pin is powered down before the VREF pin, and that the digital inputs are held in a safe state during power-down. Additionally, a power-down sequence can be implemented using external circuitry to ensure a controlled shutdown.
  • The maximum operating temperature range for the MCP4642-103E/UN is -40°C to +125°C. Operating the device outside of this range can affect its performance, including reduced accuracy, increased noise, and potential damage to the device.
  • Calibration of the MCP4642-103E/UN involves adjusting the internal voltage reference and gain settings to achieve optimal performance and accuracy. This can be done using external circuitry and software algorithms, or by using Microchip's calibration tools and software.
  • The MCP4642-103E/UN has built-in ESD protection and latch-up prevention measures, including diodes and resistors on the input pins to prevent overvoltage and latch-up. Additionally, proper PCB design and layout practices can help prevent ESD and latch-up events.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP4642-103E/UN Overview

Use the download button to access the MCP4642-103E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP46, or try a keyword search, such as Digital Potentiometers
