MCP4706A0T-E/MAY - Microchip

Description: Microchip MCP4706A0T-E/MAY, 8 bit Serial DAC, 6-Pin DFN

Download MCP4706A0T-E/MAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

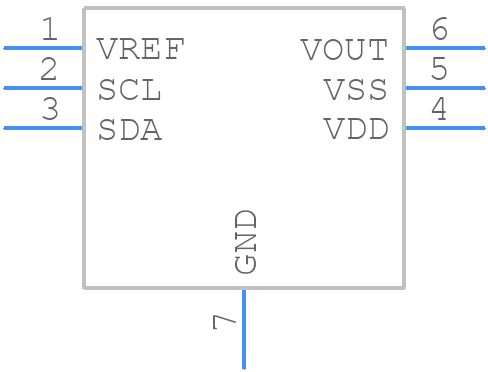

MCP4706A0T-E/MAY - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4706A0T-E/MAY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MCP4706A0T-E/MAY
click to zoom
3D Models
MCP4706A0T-E/MAY - Microchip - 3D model - Small Outline No-lead - MCP4706A0T-E/MAY
click to zoom

MCP4706A0T-E/MAY Details

  • Manufacturer Part Number:

    MCP4706A0T-E/MAY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    DFN-6

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog Output Voltage-Max:

    5.46 V

  • Analog Output Voltage-Min:

    0.01 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.3543%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

MCP4706A0T-E/MAY Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP4706A0T-E/MAY involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • To ensure the accuracy of the DAC output voltage, it's essential to use a high-precision voltage reference, such as the MCP1541, and to follow proper PCB layout and routing guidelines. Additionally, calibrating the DAC output voltage using an external calibration circuit can improve accuracy.
  • The maximum clock frequency that can be used with the MCP4706A0T-E/MAY is 1 MHz. However, it's recommended to use a clock frequency of 500 kHz or less to ensure reliable operation and minimize power consumption.
  • Yes, the MCP4706A0T-E/MAY can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple input channels. However, it's essential to ensure that the device is properly synchronized and that the input channels are properly isolated to prevent crosstalk and noise.
  • To troubleshoot issues with the MCP4706A0T-E/MAY, start by verifying the power supply voltage and clock frequency. Check the device's configuration and programming to ensure that it's set up correctly. Use a logic analyzer or oscilloscope to monitor the device's communication signals and output voltages. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP4706A0T-E/MAY Overview

Use the download button to access the MCP4706A0T-E/MAY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
