Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MCP47FEB24T-E/MQ - Microchip

Description: Digital to Analog Converters - DAC

Download MCP47FEB24T-E/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

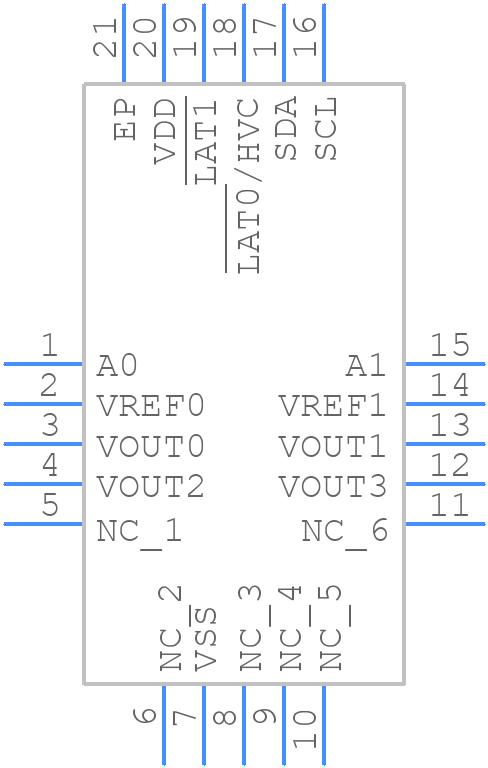

MCP47FEB24T-E/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47FEB24T-E/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MQ)20-Lead(QFN)
click to zoom
3D Models
MCP47FEB24T-E/MQ - Microchip - 3D model - Quad Flat No-Lead - (MQ)20-Lead(QFN)
click to zoom

MCP47FEB24T-E/MQ Details

  • Manufacturer Part Number:

    MCP47FEB24T-E/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-06-22

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.146484375%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    7.8 µs

  • Supply Current-Max:

    2.5 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MCP47FEB24T-E/MQ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VREF, and then the clock signal. This ensures proper initialization of the device.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference (VREF) and to minimize noise on the VREF pin. Additionally, the output voltage should be filtered using a capacitor to reduce noise and ripple.
  • The maximum output current capability of the MCP47FEB24T-E/MQ is 25 mA per channel. However, it is recommended to limit the output current to 10 mA per channel to ensure reliable operation and to prevent overheating.
  • To program the MCP47FEB24T-E/MQ using SPI, the CS pin must be pulled low, and then the desired register address and data must be sent serially using the SCK and SDI pins. The device will latch the data on the rising edge of the CS pin.
  • The VREF pin is used to set the reference voltage for the DAC outputs. The output voltage range of the DAC is determined by the voltage applied to the VREF pin. Typically, a high-precision voltage reference is connected to the VREF pin to ensure accurate output voltages.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP47FEB24T-E/MQ Overview

Use the download button to access the MCP47FEB24T-E/MQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to MCP47FEB24T-E/MQ

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

MCP47FEB24T-E/MQ Alternates

Showing results

Image Part Number Model
Part Image MCP47FEB24-E/MQ Microchip Technology Inc

D/A Converter, 1 Func, Serial Input Loading, 7.8us Settling Time, PQCC20
