MCP6007-E/MS - Microchip

Description: Operational Amplifiers - Op Amps Dual, 1MHz Op Amp, E Temp

Download MCP6007-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

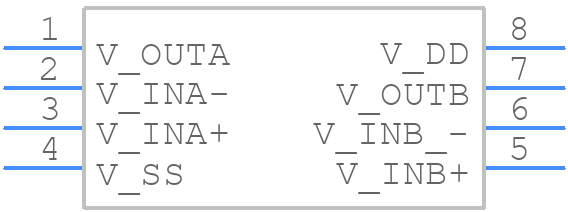

Symbol
MCP6007-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6007-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom
3D Models
MCP6007-E/MS - Microchip - 3D model - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom

MCP6007-E/MS Details

  • Manufacturer Part Number:

    MCP6007-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    76 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1600 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1.9 V/us

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    177827

  • Wideband:

    NO

  • Width:

    3 mm

MCP6007-E/MS Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6007-E/MS is 670 mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (125°C/W) of the package.
  • To ensure stability in a unity-gain buffer configuration, add a capacitor (typically 10-100 pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and prevent oscillations.
  • To minimize noise and EMI, use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the op-amp. Additionally, place decoupling capacitors (e.g., 100 nF) close to the op-amp's power pins.
  • Yes, the MCP6007-E/MS can be used as a comparator, but it's essential to ensure the input common-mode voltage is within the specified range, and to add hysteresis to prevent oscillations. Additionally, consider the op-amp's slew rate and propagation delay when designing the comparator circuit.
  • To minimize the impact of input bias current and offset voltage, use a high-impedance input source, add a bias current compensation resistor, and consider using a chopper-stabilized or auto-zero op-amp if high accuracy is required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6007-E/MS Overview

Use the download button to access the MCP6007-E/MS schematic symbol, PCB footprint, and 3D model.
