The maximum power dissipation of the MCP6294IPWT is dependent on the package type and thermal resistance. For the IPWT package, the maximum power dissipation is approximately 670mW at 25°C ambient temperature, assuming a thermal resistance of 125°C/W.
To ensure stability in high-gain configurations, it's essential to follow proper PCB layout practices, such as minimizing parasitic capacitance and inductance, using a solid ground plane, and placing bypass capacitors close to the op-amp. Additionally, consider adding a small capacitor (e.g., 10-100pF) in parallel with the feedback resistor to improve stability.
The recommended input common-mode voltage range for the MCP6294IPWT is between VDD-1.5V and VSS+1.5V. Operating outside this range may result in reduced performance, increased distortion, or even oscillation.
While the MCP6294IPWT can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (0.5V/μs) and limited output current drive capability. Texas Instruments recommends using a dedicated comparator, such as the LM339 or TLV7031, for comparator applications.
The MCP6294IPWT has built-in ESD protection, but it's still essential to follow proper ESD handling practices during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the op-amp and surrounding circuitry.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP6294IPWT Overview

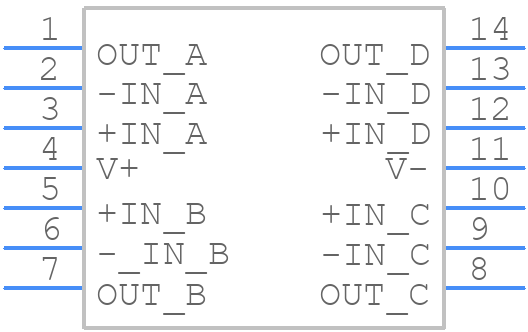

Use the download button to access the MCP6294IPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP62,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
