MCP6L91T-E/SN - Microchip

Description: Single 10 MHz OP Amp, Extended temp

Download MCP6L91T-E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

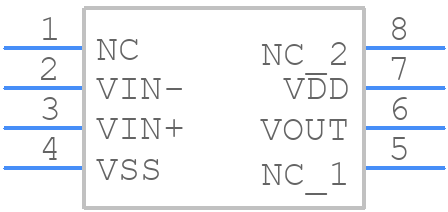

MCP6L91T-E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6L91T-E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom
3D Models
MCP6L91T-E/SN - Microchip - 3D model - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom

MCP6L91T-E/SN Details

  • Manufacturer Part Number:

    MCP6L91T-E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, LEAD FREE, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    91 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    7 V/us

  • Supply Current-Max:

    1.35 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

MCP6L91T-E/SN Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to keep the input and output traces as short as possible.
  • To ensure accuracy over the entire operating temperature range, it's recommended to use a high-precision voltage reference, and to calibrate the device at multiple temperatures. Additionally, it's important to consider the temperature coefficient of the resistors and capacitors used in the circuit.
  • The maximum input voltage that can be applied to the MCP6L91T-E/SN is 6V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage limiter or a voltage regulator to ensure that the input voltage does not exceed 6V.
  • To troubleshoot issues with the MCP6L91T-E/SN, it's recommended to check the power supply decoupling, the input and output impedance, and the PCB layout. Additionally, it's recommended to use a oscilloscope to measure the output voltage and current, and to check for any signs of oscillations or instability.
  • Yes, the MCP6L91T-E/SN can be used in high-reliability or safety-critical applications. However, it's recommended to follow the guidelines for designing and testing high-reliability systems, and to consider the device's fault tolerance and failure modes.
