MCP6N16-001E/MF - Microchip

Description: Instrumentation Amplifiers Single, Zero-Drift Instr Amp, E temp

Download MCP6N16-001E/MF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

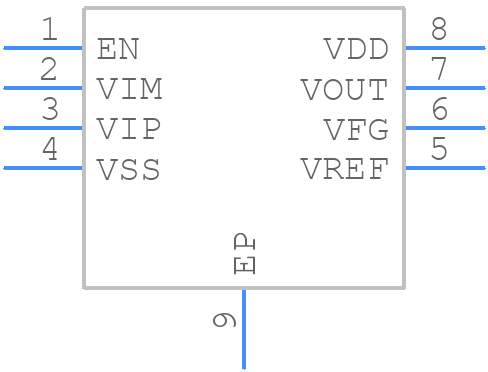

MCP6N16-001E/MF - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6N16-001E/MF - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MCP6N16-001E/MF
click to zoom
3D Models
MCP6N16-001E/MF - Microchip - 3D model - Small Outline No-lead - MCP6N16-001E/MF
click to zoom

MCP6N16-001E/MF Details

  • Manufacturer Part Number:

    MCP6N16-001E/MF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    89 dB

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    85 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.25%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    56234

  • Voltage Gain-Nom:

    446683

  • Width:

    3 mm

MCP6N16-001E/MF Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure accuracy, it's essential to consider the temperature coefficient of the device and to calibrate the circuit at multiple temperatures. Additionally, using a high-precision voltage reference and a low-temperature-coefficient resistor can help to minimize temperature-related errors.
  • The maximum allowable input voltage for the MCP6N16-001E/MF is 6.5V. Exceeding this voltage can cause the device to malfunction or even damage it. It's essential to ensure that the input voltage is within the recommended range to maintain the device's performance and accuracy.
  • To troubleshoot common issues, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output capacitors are properly selected and placed. If the issue persists, try adding a small capacitor (e.g., 10nF) between the output and ground to improve stability.
  • The recommended input capacitor value is 10uF, and it's recommended to use a low-ESR ceramic capacitor (e.g., X5R or X7R). The input capacitor helps to filter out high-frequency noise and ensures stable operation. A larger capacitor value can improve noise rejection, but it may also increase the startup time.
