MCP6N16-001E/MS - Microchip

Description: MCP6N16-001E/MS Microchip, Instrumentation Amplifier, 85μV Offset 500kHz, R-RO, 1.8 5.5 V, 8-Pin MSOP

Download MCP6N16-001E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

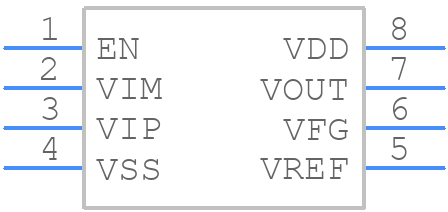

Symbol
MCP6N16-001E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6N16-001E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MCP6N16-001E/MS
click to zoom
3D Models
MCP6N16-001E/MS - Microchip - 3D model - Small Outline Packages - MCP6N16-001E/MS
click to zoom

MCP6N16-001E/MS Details

  • Manufacturer Part Number:

    MCP6N16-001E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    89 dB

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    85 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.25%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    56234

  • Voltage Gain-Nom:

    446683

  • Width:

    3 mm

MCP6N16-001E/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6N16-001E/MS involves keeping the input and output traces separate, using a ground plane, and placing the device close to the input filter capacitors. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass capacitor.
  • To ensure stability, it's essential to follow the recommended operating conditions, including the input voltage range, output current, and temperature range. Additionally, a minimum of 10uF capacitance is recommended for the input filter capacitor, and the output capacitor should be at least 2.2uF.
  • The maximum allowed power dissipation for the MCP6N16-001E/MS is 1.4W. It's essential to ensure that the device does not exceed this power dissipation to prevent overheating and damage.
  • The MCP6N16-001E/MS is rated for operation up to 125°C. However, it's essential to consider the derating curves and ensure that the device does not exceed the maximum allowed junction temperature (Tj) of 150°C.
  • To troubleshoot issues with the MCP6N16-001E/MS, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If issues persist, consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6N16-001E/MS Overview

Use the download button to access the MCP6N16-001E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6N, or try a keyword search, such as Instrumentation Amplifiers
