MCP6N16-010E/MS - Microchip

Description: Instrumentation Amplifiers Single, Zero-Drift Instr Amp, E temp

Download MCP6N16-010E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

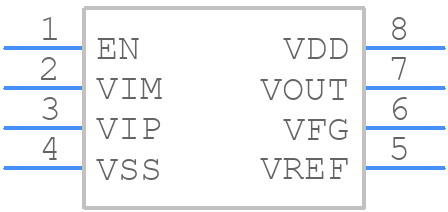

Symbol
MCP6N16-010E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6N16-010E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC SMALL OUTLINE PACKAGE (MS)
click to zoom
3D Models
MCP6N16-010E/MS - Microchip - 3D model - Small Outline Packages - 8-LEAD PLASTIC SMALL OUTLINE PACKAGE (MS)
click to zoom

MCP6N16-010E/MS Details

  • Manufacturer Part Number:

    MCP6N16-010E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    22 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.25%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    354813

  • Voltage Gain-Nom:

    2818382

  • Width:

    3 mm

MCP6N16-010E/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6N16-010E/MS should include a solid ground plane, short traces, and minimal vias to reduce noise and parasitic inductance. A 4-layer board with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the gain and phase margins are sufficient, and the amplifier is operated within its recommended frequency range. Additionally, use a compensation capacitor (if required) and ensure that the output impedance is matched to the load impedance.
  • The maximum power dissipation of the MCP6N16-010E/MS is dependent on the package type and thermal resistance. Calculate the power dissipation using the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Additionally, use voltage regulators or overvoltage protection circuits to prevent voltage exceeding the recommended maximum ratings.
  • The recommended input impedance is typically in the range of 1 kΩ to 10 kΩ, while the recommended output impedance is typically in the range of 100 Ω to 1 kΩ. However, the optimal impedance values depend on the specific application and should be determined through simulation and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6N16-010E/MS Overview

Use the download button to access the MCP6N16-010E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6N, or try a keyword search, such as Instrumentation Amplifiers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
