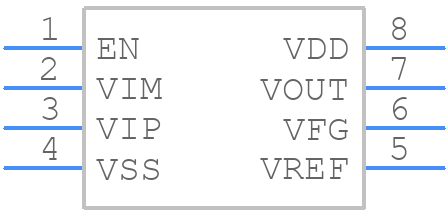

MCP6n16-100E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6n16-100E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP
click to zoom
3D Models
MCP6n16-100E/MS - Microchip - 3D model - Small Outline Packages - MSOP
click to zoom

MCP6n16-100E/MS Details

  • Manufacturer Part Number:

    MCP6N16-100E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    112 dB

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    17 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.25%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    891250

  • Voltage Gain-Nom:

    7079457

  • Width:

    3 mm

MCP6n16-100E/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6N16-100E/MS involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the input and output connectors. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure stability, it's essential to follow the recommended operating conditions, such as input and output voltage ranges, and to provide adequate power supply decoupling. Additionally, the device should be operated within its specified temperature range, and the input and output impedance should be matched to minimize reflections.
  • The maximum power dissipation of the MCP6N16-100E/MS is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
  • The MCP6N16-100E/MS is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and to consider the thermal management of the device in high-temperature applications.
  • To troubleshoot issues with the MCP6N16-100E/MS, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals for any signs of distortion or clipping. Use an oscilloscope to measure the input and output waveforms and to identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance.
